STJH-CURVED-CLEANROOM-WALL-PANEL-R102-COMPOSITE

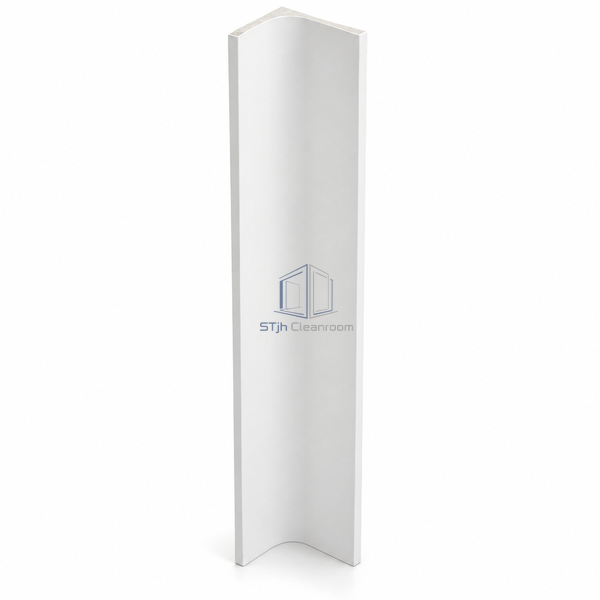

Curved Cleanroom Wall Panel 102 mm Radius Composite Corner

Compact preformed arc for a fully finished interior corner.

Small radius uses limited corner space.
Flat edge lands simplify seam finishing.
Factory forming avoids forcing flat board into a tight bend.

Request a Quote Browse Products

Product Introduction

A rigid composite sandwich bends through ninety degrees with short flat edge lands. Screws secure the substrate to framing; taped seams and a complete surface finish create the final enclosed wall transition.

Key Features

Small radius uses limited corner space.
Flat edge lands simplify seam finishing.
Factory forming avoids forcing flat board into a tight bend.

Technical Parameters

Inside Radius	101.6 mm
Arc Angle	90 degrees
Panel Thickness	12.7 mm
Length	2438.4 mm
Outside Radius	114.3 mm
Edge Lands	57.15 mm
Construction	Preformed composite sandwich
Attachment	Screw-fixed to framing
Surface Treatment	Taped seams and complete painted finish
Customization	Available for the intended interior corner and finish system.

Applications

Finished cleanroom internal corners
Sealed wall-to-wall transitions

Solutions for Your Application

Bending ordinary board creates cracks at tight radii.

The arc is manufactured to the required curve.

Finishing directly on the bend is difficult.

Flat edge lands move the seam away from the curved face.

Available Options

Tapered joining edges
Matched corner orientation

Planning a Curved Cleanroom Wall Panel 102 mm Radius Composite Corner specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
