STJH-CONSTANT-AIR-VOLUME-TERMINAL-BOX-DN600

Constant Air Volume Terminal Box DN600 High-Capacity

Large DN600 constant-volume terminal for principal controlled supply branches.

Large inlet accommodates main-branch distribution.
Short body-to-diameter proportion limits longitudinal space use.

Request a Quote Browse Products

Product Introduction

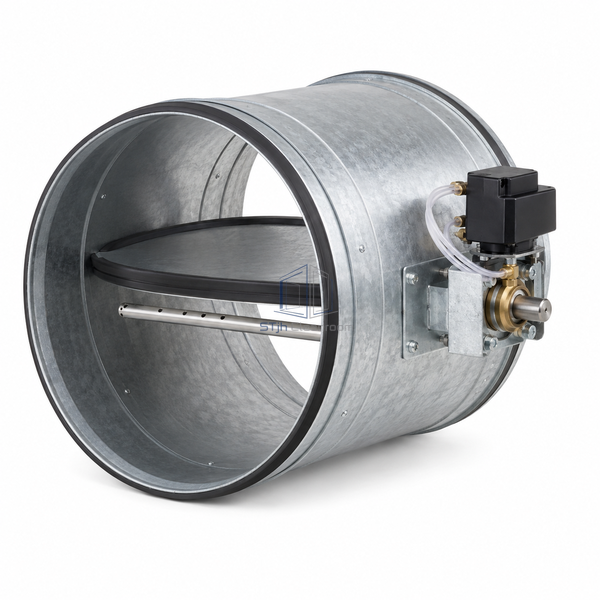

The largest selected casing has a 600 mm inlet and 585 mm body length. A broad sensing section and actuated double-skin blade regulate the large airway, making this a short, wide terminal for substantial duct routes.

Key Features

Large inlet accommodates main-branch distribution.
Short body-to-diameter proportion limits longitudinal space use.

Technical Parameters

Inlet Diameter	600 mm
Published Size Class	24 in
Body Length	585 mm
Shell Material	22 gauge galvanized steel
Blade Form	Double-skin with rubber seal
Bearing Material	Brass
Airflow Probe	Multipoint aluminum averaging
Control Method	Electric constant volume
Installation Type	Single-duct supply terminal
Customization	Available for the intended large-zone duty and operating environment.

Applications

Large clean-suite supply branches
Grouped terminal distribution headers

Solutions for Your Application

A main branch requires active volume control in limited run length.

The broad 600 mm inlet is combined with a 585 mm long regulating body.

Available Options

Stainless-steel casing assembly
External controls enclosure

Planning a Constant Air Volume Terminal Box DN600 High-Capacity specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
