Constant Air Volume Terminal Box DN150

Small electrically controlled CAV terminal for maintaining a set zone supply volume.

Integrated sensing and actuation support constant-volume operation.
Compact body suits a single small distribution branch.

Request a Quote Browse Products

Product Introduction

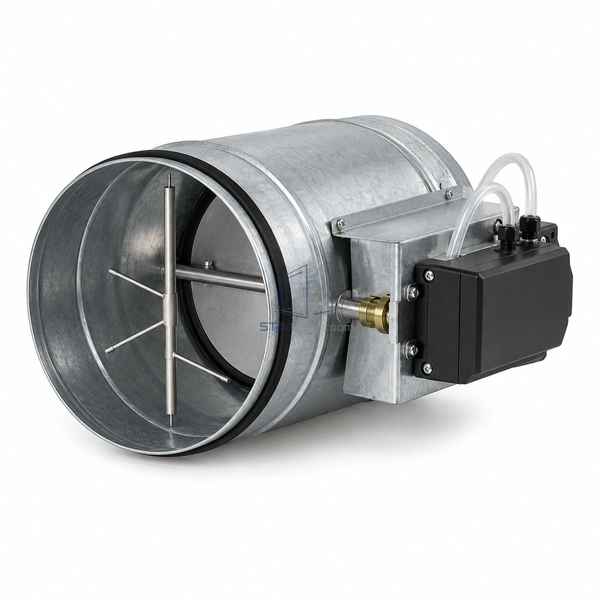

The DN150 nominal unit uses the documented 152 mm actual inlet. An averaging probe senses inlet flow and feeds the actuator/controller, which positions a sealed double-skin blade inside the galvanized casing.

Key Features

Integrated sensing and actuation support constant-volume operation.
Compact body suits a single small distribution branch.

Technical Parameters

Inlet Size	DN150 nominal; 152 mm actual (6 in)
Body Length	361 mm
Casing	22 gauge galvanized steel
Zinc Coating	G90
Blade Construction	Double-skin galvanized steel
Blade Seal	Rubber
Sensing Probe	Aluminum multipoint averaging
Bearing	Brass
Control	Electric constant-air-volume
Customization	Controls and installation details can suit the intended application.

Applications

Small constant-supply zones
Dedicated support-room ventilation branches

Solutions for Your Application

Supply pressure changes alter a manually balanced branch flow.

The sensor and modulating actuator adjust the blade to maintain the configured airflow.

Available Options

Protective control enclosure
Stainless construction option
