STJH-CONSTANT-AIR-VOLUME-CONTROLLER-DN100

Constant Air Volume Controller DN100 Self-Powered

Mechanical constant-flow regulation for a small round branch.

No external energy is needed for basic constant-flow operation.
The small-bore format suits localized supply or extract branches.

Request a Quote Browse Products

Product Introduction

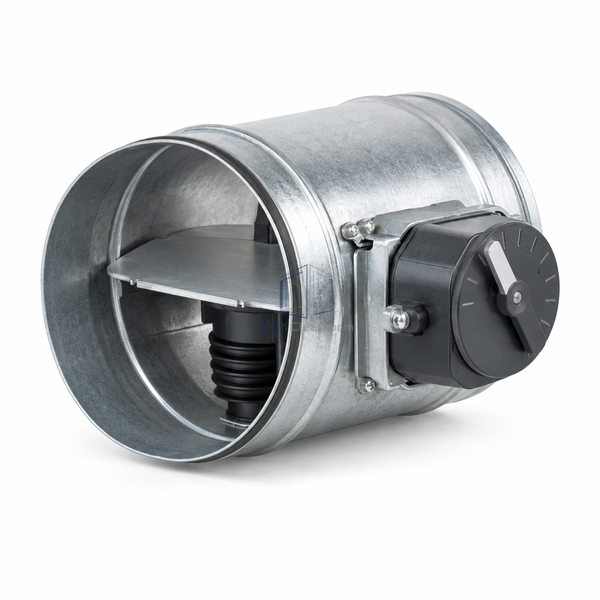

The compact cylindrical body contains a low-friction blade, damping bellows and spring mechanism. An external setting scale establishes the desired airflow; the internal balance adjusts the blade as duct pressure changes.

Key Features

No external energy is needed for basic constant-flow operation.
The small-bore format suits localized supply or extract branches.

Technical Parameters

Nominal Diameter	100 mm
Flow Range	79–324 m³/h
Minimum Differential Pressure	50 Pa
Maximum Differential Pressure	1000 Pa
Scale Accuracy	±4%
Operating Temperature	10–50 °C
Casing Material	Galvanized steel
Control Mechanism	Mechanical blade, bellows and leaf spring
Setpoint Adjustment	External scale
Customization	Available for the intended branch airflow and installation environment.

Applications

Small constant-volume laboratory branches
Localized cleanroom supply outlets

Solutions for Your Application

Branch flow changes when other ducts open or close.

The mechanical balance varies blade resistance in response to the pressure change.

Power wiring is unavailable at the branch.

Airflow forces operate the basic regulator without an electrical supply.

Available Options

End lip seals
Acoustic cladding
Stainless steel construction
