Concealed Cleanroom Ceiling Grid 80 mm Clip-In

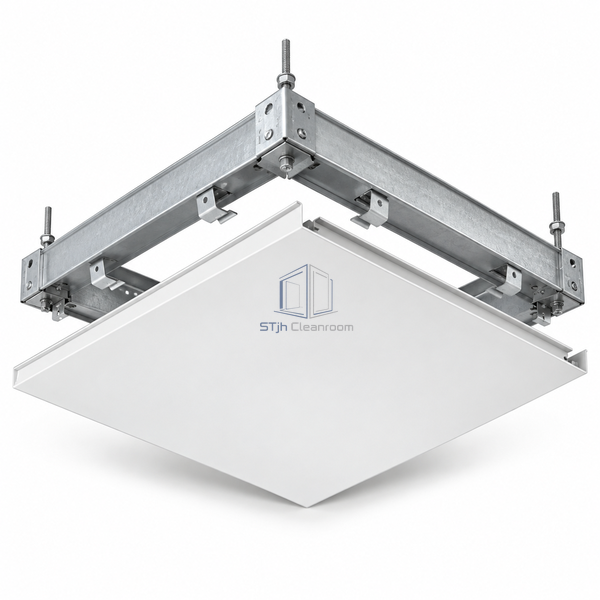

An 80 mm concealed clip-in carrier for removable 600 mm cleanroom ceiling cassettes.

Clamping studs locate the cassette edge in the hidden support.
Narrow joints reduce the visual interruption between adjacent panels.
Non-walkable construction suits ceilings serviced from below.

Request a Quote Browse Products

Product Introduction

Galvanized steel cassettes engage a concealed clamping arrangement through their formed perimeter edges. The selected 600 x 600 mm module forms a tight ceiling pattern with approximately 1 mm joints. Cassettes are withdrawn downward for access rather than lifted into the void.

Key Features

Clamping studs locate the cassette edge in the hidden support.
Narrow joints reduce the visual interruption between adjacent panels.
Non-walkable construction suits ceilings serviced from below.

Technical Parameters

System Height	Approximately 80 mm
Module Size	600 x 600 mm
Cassette Material	Galvanized steel
Edge Construction	L-edging with clamping studs
Joint Width	Approximately 1 mm
Maximum Suspension Spacing	1200 x 1200 mm
Carrier Position	Concealed above cassettes
Access Direction	Downward removal
Access Level	Non-walkable
Customization	Available based on the intended application and operating environment.

Applications

Laboratory cassette ceilings
Clean production rooms with below-ceiling maintenance

Solutions for Your Application

There is insufficient room to lift a tile above the grid.

The cassette releases downward without a lift-out movement into the void.

An exposed tee pattern interrupts the ceiling finish.

Concealed clamping profiles sit behind the panel plane.

Available Options

Matching perimeter trim
Coordinated light and ventilation openings
