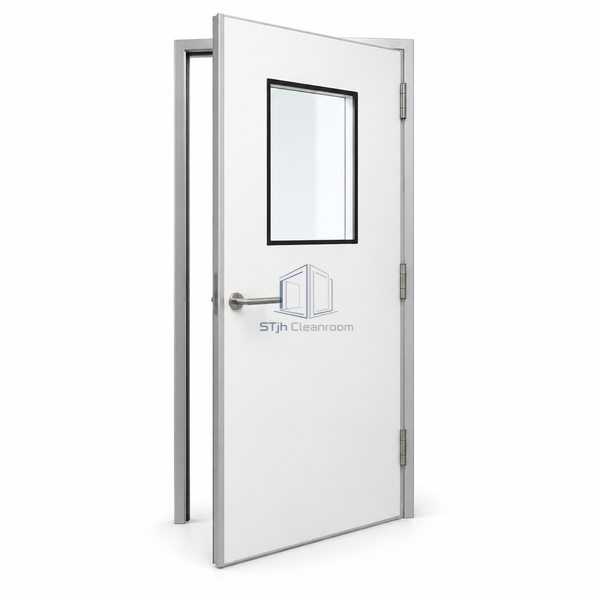

STjh paper-honeycomb HPL cleanroom door on white with a 400 x 600 mm rectangular window and aluminum edging.

STJH-COMPACT-HPL-CLEANROOM-DOOR-PAPER-HONEYCOMB

Compact HPL Cleanroom Door Paper-Honeycomb Core

A compact HPL personnel door with paper-honeycomb infill and a defined 400 x 600 mm viewing panel.

The defined window format simplifies coordination of sightlines.
Aluminum edging protects the perimeter of the laminate faces.
A drop seal supports a clear floor passage during opening.

Request a Quote Browse Products

Product Introduction

The selected HPL door combines a laminate-faced blade with an aluminum alloy edge and supporting frame. A flame-retardant paper-honeycomb core fills the opaque portion behind the faces. The rectangular viewing panel measures 400 x 600 mm and is double glazed, giving this 900 x 2100 mm nominal single door a clearly defined observation area. Its bottom gasket lowers as the leaf closes and retracts as the door swings away from the frame.

Key Features

The defined window format simplifies coordination of sightlines.
Aluminum edging protects the perimeter of the laminate faces.
A drop seal supports a clear floor passage during opening.

Technical Parameters

Nominal Size	900 x 2100 mm
Facing	Compact HPL
Infill	Flame-retardant paper honeycomb
Frame	50 mm aluminum alloy
Arrangement	Single hinged leaf
Viewing Panel Size	400 x 600 mm
Glazing	Rectangular double glazing
Handle	304 stainless steel lever
Threshold Sealing	Automatic drop-down seal
Customization	Available for the intended partition and room-access conditions.

Applications

Hospital pharmacy personnel entrances.
Laboratory preparation rooms using laminate-faced partitions.

Solutions for Your Application

Will an undefined window size complicate the door schedule?

The chosen configuration fixes the rectangular light at 400 x 600 mm.

Could exposed laminate edges be difficult to maintain?

An aluminum perimeter contains the face-sheet edges and carries the door hardware.

Available Options

Right- or left-handed hinge layout.
Hydraulic closer matched to the single leaf.

Planning a Compact HPL Cleanroom Door Paper-Honeycomb Core specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
