STJH-CLEANROOM-WALL-BASE-CHANNEL-100-130-ADJUSTABLE

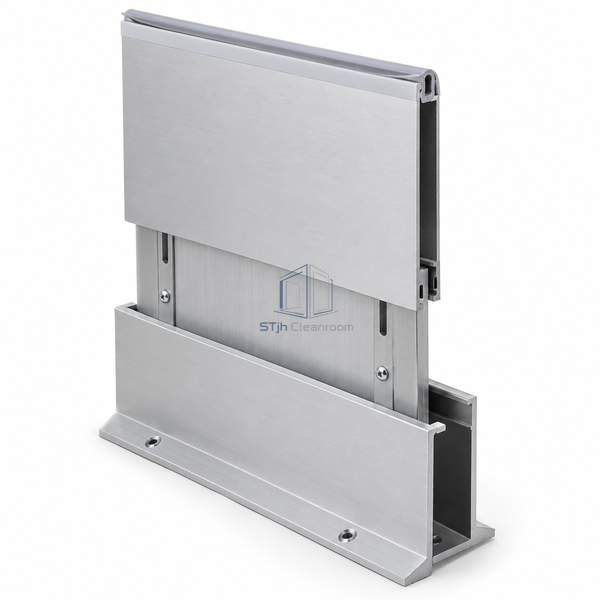

Cleanroom Wall Base Channel 100-130 mm Adjustable

A two-part adjustable wall base for flush alignment with 2 mm vinyl flooring.

The upper member adjusts independently of the anchored channel.
The recessed arrangement coordinates with 2 mm vinyl.
A 2.5 mm wall section gives the extrusion a defined structural depth.

Request a Quote Browse Products

Product Introduction

The base channel anchors to the floor while an upper panel interface adjusts through a 100–130 mm height range. The 6063 aluminum members provide the recessed detail needed to bring the wall panel and resilient floor finish into alignment.

Key Features

The upper member adjusts independently of the anchored channel.
The recessed arrangement coordinates with 2 mm vinyl.
A 2.5 mm wall section gives the extrusion a defined structural depth.

Technical Parameters

Adjustable Height	100–130 mm
Profile Wall Thickness	2.5 mm
Maximum Length	3000 mm
Material	6063 aluminum
Floor Covering Thickness	2 mm
Assembly	Base channel and adjustable panel interface
Floor Fixing	Direct mechanical anchors
Upper Fixing Centers	500 mm
Finish Relationship	Flush vinyl-to-panel interface
Customization	Available based on the intended application and operating environment.

Applications

Vinyl-floored cleanroom walls
Wall bases requiring elevation adjustment

Solutions for Your Application

The finished panel level varies along the floor.

The adjustable upper interface allows local height setting above the fixed base.

The resilient floor should meet the wall without an abrupt step.

The recessed geometry is configured for a flush 2 mm vinyl interface.

Available Options

Jacking support blocks
Compatible flooring cove formers
