STJH-CLEANROOM-WALL-ACCESS-600-DUAL-SEAL

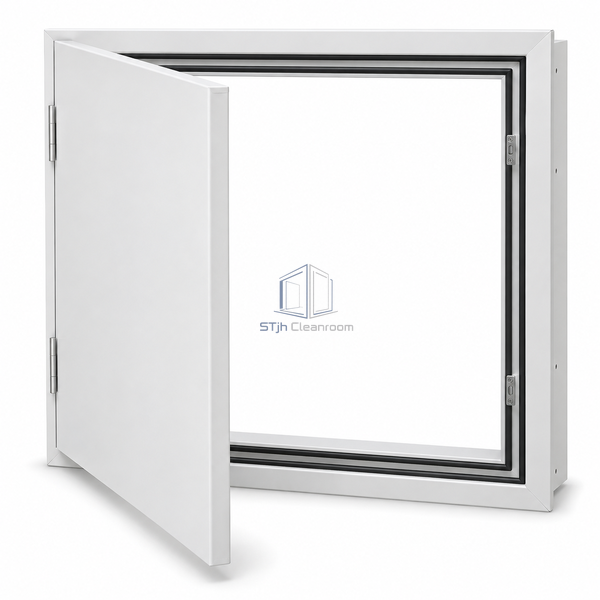

Cleanroom Wall Access Panel 600 mm Dual-Seal

A broad single-leaf wall access panel with dual gasket sealing.

The large clear aperture improves access to grouped services.
One leaf avoids a central meeting stile.
A powder-coated surface finishes the steel door and frame.

Request a Quote Browse Products

Product Introduction

The 600 mm door provides a 549 mm clear opening inside a 610 mm structural aperture. This larger square format creates more room for service work while retaining a single coated-steel leaf and its continuous dual-seal perimeter.

Key Features

The large clear aperture improves access to grouped services.
One leaf avoids a central meeting stile.
A powder-coated surface finishes the steel door and frame.

Technical Parameters

Door Size	600 x 600 mm
Structural Aperture	610 x 610 mm
Accessible Width	549 mm
Accessible Height	549 mm
Construction Metal	Zintec steel
Finish Type	Polyester powder coating
Number of Leaves	One
Perimeter Seal	Dual gasket system
Installation	Wall access
Customization	Available to suit the intended application and operating environment.

Applications

Grouped cleanroom wall services
Larger single-door maintenance apertures

Solutions for Your Application

Several service connections need access through one opening.

The 549 mm clear square offers a broader working area.

A central stile would divide the usable opening.

The single-leaf arrangement leaves an uninterrupted aperture when open.

Available Options

Picture-frame surround
Beaded frame for integrated finishing

Planning a Cleanroom Wall Access Panel 600 mm Dual-Seal specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
