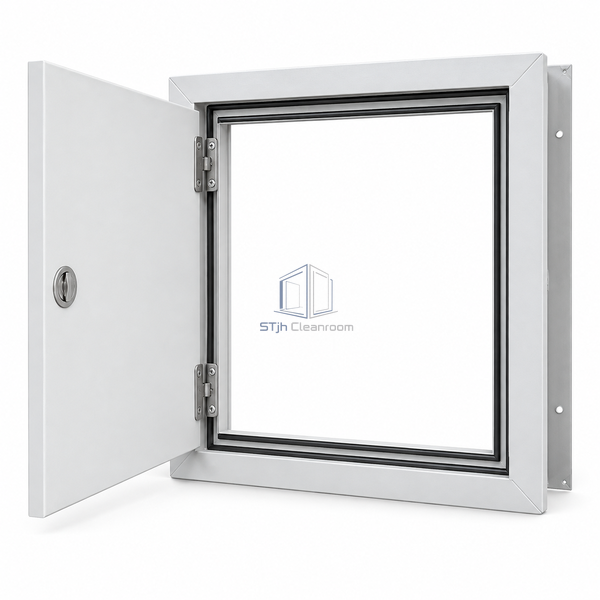

Cleanroom Wall Access Panel 450 mm Dual-Seal

A medium-sized gasketed wall panel for hands-on maintenance of cleanroom services.

The clear opening accommodates more working room than a small hatch.
A single leaf keeps the opening arrangement straightforward.
Two gasket lines surround the service aperture.

Request a Quote Browse Products

Product Introduction

The 450 mm leaf opens to a 399 mm clear space within a 460 mm structural aperture. Its coated zintec construction and dual-gasket interface provide an intermediate access size where a small inspection opening would restrict tool movement.

Key Features

The clear opening accommodates more working room than a small hatch.
A single leaf keeps the opening arrangement straightforward.
Two gasket lines surround the service aperture.

Technical Parameters

Leaf Dimensions	450 x 450 mm
Structural Width	460 mm
Structural Height	460 mm
Clear Access Dimensions	399 x 399 mm
Base Metal	Zintec steel
Coating	Polyester powder coated
Door Arrangement	Single leaf
Seal Type	Dual gasket
Mounting Position	Vertical wall
Customization	Available based on the intended application and operating environment.

Applications

Valve and connection maintenance points
Medium cleanroom wall service openings

Solutions for Your Application

A small opening restricts hand and tool movement.

The 399 mm accessible width provides a larger working aperture.

The opening still needs a compact single-door arrangement.

The 450 mm leaf avoids a split double-door configuration.

Available Options

Beaded perimeter frame
Picture-frame perimeter
