STJH-CLEANROOM-WALL-ACCESS-300-DUAL-SEAL

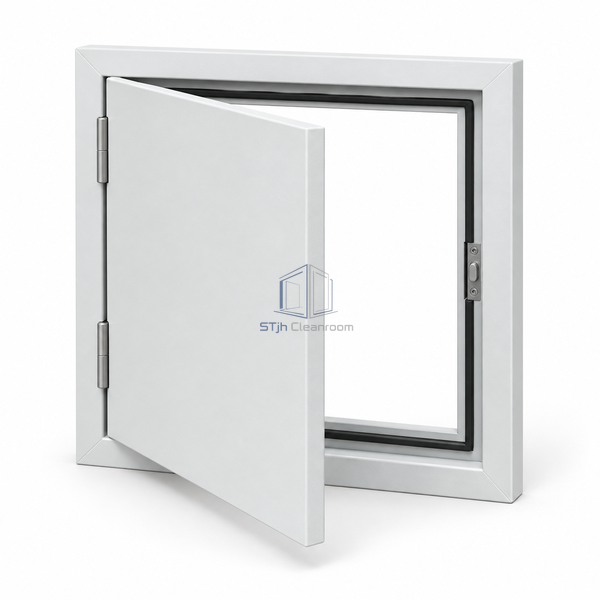

Cleanroom Wall Access Panel 300 mm Dual-Seal

A compact dual-seal wall access door for small cleanroom service points.

A compact aperture suits local inspection points.
Dual seals provide two closure interfaces around the leaf.
The coated steel surface gives a consistent exposed finish.

Request a Quote Browse Products

Product Introduction

The 300 mm square zintec-steel door fits a 310 mm structural opening and leaves a 249 mm clear access space. Two gasket lines close the leaf-to-frame interface, concentrating service access into a small wall area.

Key Features

A compact aperture suits local inspection points.
Dual seals provide two closure interfaces around the leaf.
The coated steel surface gives a consistent exposed finish.

Technical Parameters

Door Width	300 mm
Door Height	300 mm
Structural Opening	310 x 310 mm
Accessible Opening	249 x 249 mm
Door Material	Zintec steel
Surface Finish	Polyester powder coating
Leaf Count	One
Sealing System	Dual gasket
Installation Position	Wall
Customization	Available for the intended application and operating environment.

Applications

Small cleanroom wall inspection points
Local concealed service access

Solutions for Your Application

A large access panel would take unnecessary wall space.

The 300 mm door provides a compact local opening.

The structural aperture is being mistaken for usable access space.

The specified 249 mm clear opening identifies the actual available passage.

Available Options

Picture-frame edge
Beaded-frame edge
