The selected trim may not accommodate the panel edge once its wall gauge is considered.
Channel selection uses both the receiving clearance and the panel thickness; the 75 mm designation identifies the nominal family size.
STJH-CLEANROOM-U-EDGE-TRIM-75

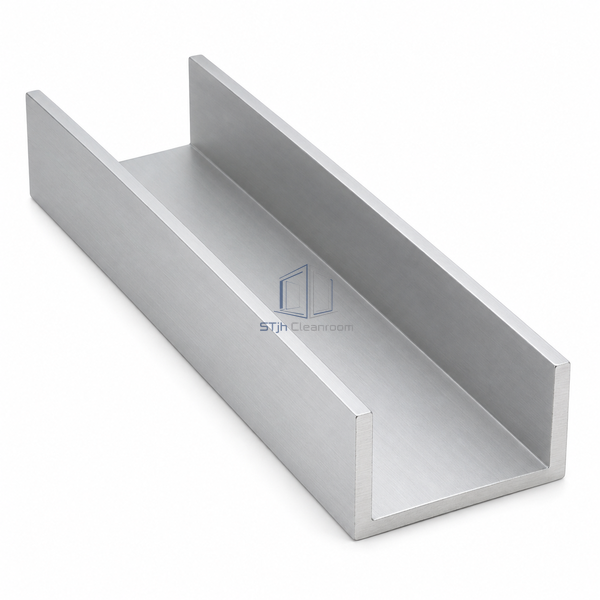

Cleanroom U-Channel Edge Trim 75 mm Panel
A 75 mm aluminum channel for intermediate-depth cleanroom panel edges.
- The intermediate-size family provides an alternative to narrow and wide edge channels.
- Continuous side legs cover the panel termination along the run.
- Anodizing or powder coating can coordinate the exposed metal surface.
Product Introduction
The U extrusion encloses a panel termination with a base and two parallel sides. Its nominal 75 mm family size identifies the intermediate channel selection, while the chosen wall gauge and finish define the supplied trim construction.
Key Features
- The intermediate-size family provides an alternative to narrow and wide edge channels.
- Continuous side legs cover the panel termination along the run.
- Anodizing or powder coating can coordinate the exposed metal surface.
Technical Parameters
| Nominal Channel Size | 75 mm |
|---|---|
| Alloy Options | 6063 aluminum |
| Temper Options | T5 or T6 |
| Profile Wall Thickness Options | 0.8-5.0 mm |
| Supply Length Options | 3000-6000 mm |
| Cross-Section | U channel |
| Manufacturing Method | Extrusion |
| Surface Finish Options | Anodized or powder coated |
| Finish Thickness Options | Anodized film: 8-25 µm; powder coating: 40-120 µm |
| Customization | Available based on the intended application and operating environment. |
Applications
- 75 mm cleanroom panel terminations
- Intermediate-depth wall edge interfaces
Solutions for Your Application
An unfinished termination leaves the core accessible at the panel end.
The continuous trim closes the exposed end behind a defined metal boundary.
Available Options
- Natural anodized finish
- White powder-coated finish
Planning a Cleanroom U-Channel Edge Trim 75 mm Panel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
