STJH-CLEANROOM-U-EDGE-TRIM-100

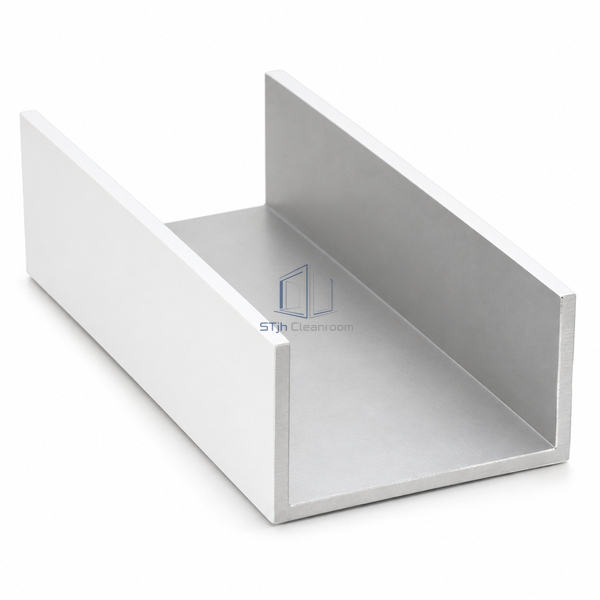

Cleanroom U-Channel Edge Trim 100 mm Panel

A wide 100 mm U-section trim for deeper cleanroom panel terminations.

The 100 mm section is the widest of this trim selection.
One continuous base closes the broad panel end.
The simple U shape avoids a second unused receiving side.

Request a Quote Browse Products

Product Introduction

This larger channel covers a broad panel edge while maintaining the simple single-receiver form. The extrusion offers a defined straight boundary at thick-panel ends, with finish options that can coordinate with the adjoining wall surface.

Key Features

The 100 mm section is the widest of this trim selection.
One continuous base closes the broad panel end.
The simple U shape avoids a second unused receiving side.

Technical Parameters

Nominal Channel Size	100 mm
Alloy Options	6063 aluminum
Temper Options	T5 or T6
Profile Wall Thickness Options	0.8-5.0 mm
Supply Length Options	3000-6000 mm
Cross-Section	U channel
Manufacturing Method	Extrusion
Surface Finish Options	Anodized or powder coated
Finish Thickness Options	Anodized film: 8-25 µm; powder coating: 40-120 µm
Customization	Available to suit the intended application and operating environment.

Applications

Thick cleanroom panel end closures
Wide panel perimeter interfaces

Solutions for Your Application

A broad panel end requires a channel that accommodates its full thickness.

The nominal 100 mm family provides a wide selection; the chosen section's receiving clearance determines its fit around the panel.

A double-sided connector would leave an unnecessary open side.

The single U receiver terminates the edge against its closed base.

Available Options

Panel-matching coating
Pre-cut channel sections

Planning a Cleanroom U-Channel Edge Trim 100 mm Panel specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
