The door closes too quickly after use.
Adjust the hydraulic closing speed for the installed leaf.
STJH-CLEANROOM-SLIDE-CHANNEL-DOOR-CLOSER-HYDRAULIC

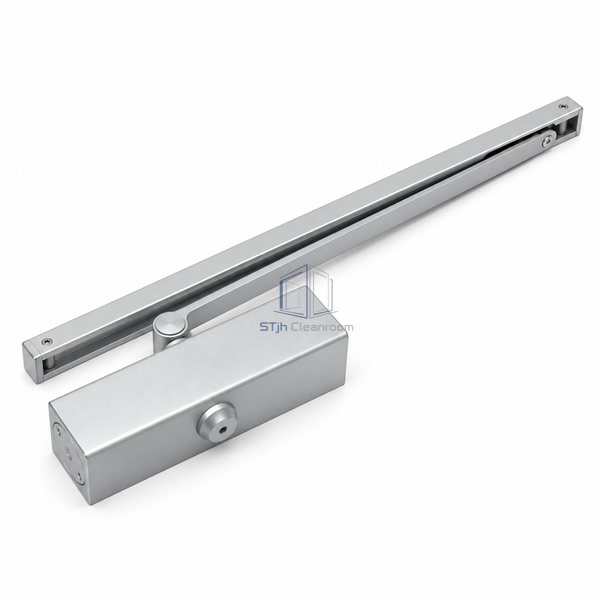

Cleanroom Slide-Channel Door Closer Hydraulic
Control single-leaf closing speed with an adjustable hydraulic closer and a compact slide channel.
- Closing-force adjustment accommodates different leaf requirements.
- Backcheck slows a forcefully opened door.
- Guide-rail geometry limits projecting arm hardware.
Product Introduction
The closer mounts above a single-action door and transfers movement through a lever running in a guide rail. Hydraulic adjustment governs closing, latching and backcheck behaviour, while the compact channel replaces a projecting articulated arm. The mechanism provides a controlled return after the door is released. It is suitable for a cleanroom access leaf where overhead hardware must fit within a clear, orderly frame arrangement and remain accessible for adjustment.
Key Features
- Closing-force adjustment accommodates different leaf requirements.
- Backcheck slows a forcefully opened door.
- Guide-rail geometry limits projecting arm hardware.
Technical Parameters
| Closer Type | Hydraulic overhead |
|---|---|
| Closing Force | Adjustable EN 2–6 |
| Maximum Leaf Width | 1400 mm |
| Door Arrangement | Single-action leaf |
| Arm Connection | Slide channel |
| Backcheck | Hydraulically adjustable |
| Closing Speed | Adjustable |
| Latching Action | Adjustable |
| Hold-Open | Optional mechanical device |
| Customization | Mounting plates and guide-rail accessories can suit the door and frame. |
Applications
- Single cleanroom access doors.
- Laboratory corridor doors with limited arm clearance.
Solutions for Your Application
A conventional arm projects into the available space.
The guide-rail linkage keeps the arm close to the door head.
Available Options
- Mounting plate.
- Opening-restrictor guide rail.
- Mechanical hold-open accessory.
Planning a Cleanroom Slide-Channel Door Closer Hydraulic specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
