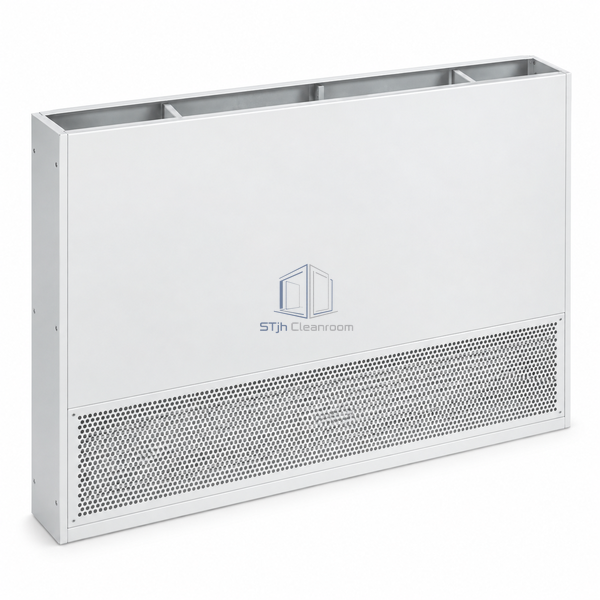

Cleanroom Return-Air Riser Wall Panel 1180 mm Wide

Wide flush return module for larger air-collection wall bays.

Wider inlet spreads air collection along the wall.
Site splicing follows modular panel installation.
Smooth surrounding face aligns with adjacent partitions.

Request a Quote Browse Products

Product Introduction

The 1180 mm panel houses a vertical return passage inside a slim partition. Prefabricated face and frame components produce a broad inlet area without attaching a freestanding duct column to the room.

Key Features

Wider inlet spreads air collection along the wall.
Site splicing follows modular panel installation.
Smooth surrounding face aligns with adjacent partitions.

Technical Parameters

Module Width	1180 mm
Partition Depth	100 mm
Maximum Height	6000 mm
Internal Keel	0.6 mm
Outer Skin	Prepainted galvanized steel
Return-Air Range	500–1000 m³/h
Duct Arrangement	Internal hollow riser
Face Alignment	Flush
Assembly	Factory-prefabricated, site-spliced
Customization	Available for the intended ventilation duty and room dimensions.

Applications

Larger pharmaceutical airlocks
Cosmetics cleanroom return runs

Solutions for Your Application

A small inlet concentrates return flow at one location.

The broader module provides a wider collection face.

Separate duct fabrication complicates the partition run.

The return passage arrives within the wall module.

Available Options

Alternative metal facings
Adjustable air-volume arrangement

Planning a Cleanroom Return-Air Riser Wall Panel 1180 mm Wide specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
