A coated face may not match the facility's surface preference.
This model retains stainless facing, allowing cleaning-agent compatibility to be considered against that actual material.
STJH-CLEANROOM-PERSONNEL-ACCESS-DOOR-MASONRY-950

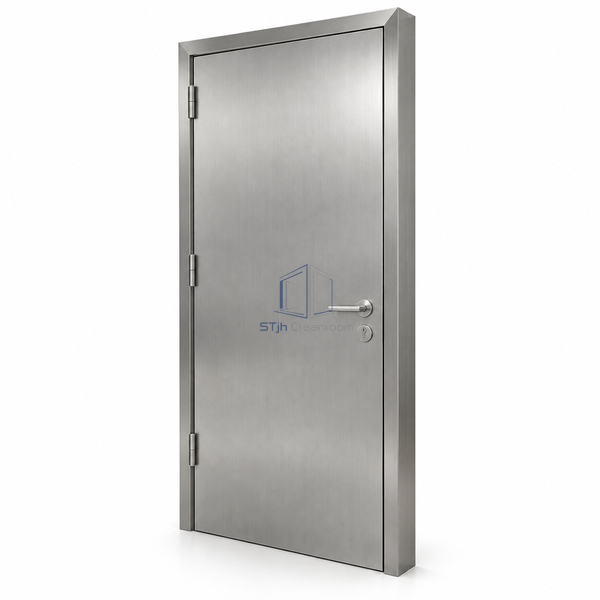

Cleanroom Personnel Access Door 950 mm Stainless Masonry-Wall
A 950 mm stainless-faced staff door for thicker existing walls and regular cleaning.
- Stainless facing provides a defined metal surface for cleaning compatibility.
- The larger single-leaf wall hole adds width without a secondary leaf.
- Deep frame returns suit substantial existing partitions.
Product Introduction
A stainless exposed face covers the single personnel leaf of this solid-wall door. The 40 mm leaf closes within a frame designed for masonry or solid walls at least 105 mm thick, giving the assembly a different installation boundary from modular panel doors. Its ordinary handle lock serves routine circulation without adding interlock or panic hardware. The 950 x 2100 mm wall-hole size provides a useful reference for renovation work, while the finished opening depends on the selected frame and door position.
Key Features
- Stainless facing provides a defined metal surface for cleaning compatibility.
- The larger single-leaf wall hole adds width without a secondary leaf.
- Deep frame returns suit substantial existing partitions.
Technical Parameters
| Nominal Door Hole | 950 x 2100 mm |
|---|---|
| Leaf Thickness | 40 mm |
| Exposed Material | Stainless steel |
| Supporting Wall | Masonry or solid wall |
| Minimum Wall Depth | 105 mm |
| Leaf Count | Single leaf |
| Movement | Hinged |
| Latch Hardware | Handle lock |
| Frame Configuration | Solid-wall surround |
| Customization | Available for the intended use and actual wall construction. |
Applications
- Frequently cleaned staff entrances in renovated facilities
- Solid-wall personnel routes near process support rooms
Solutions for Your Application
A double door is unnecessary but the smaller single opening is restrictive.
The 950 mm door-hole format keeps one leaf while offering the widest option in this personnel set.
Available Options
- Overhead closer
- Opening hand selection
- Compatible stainless handle arrangement
Planning a Cleanroom Personnel Access Door 950 mm Stainless Masonry-Wall specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
