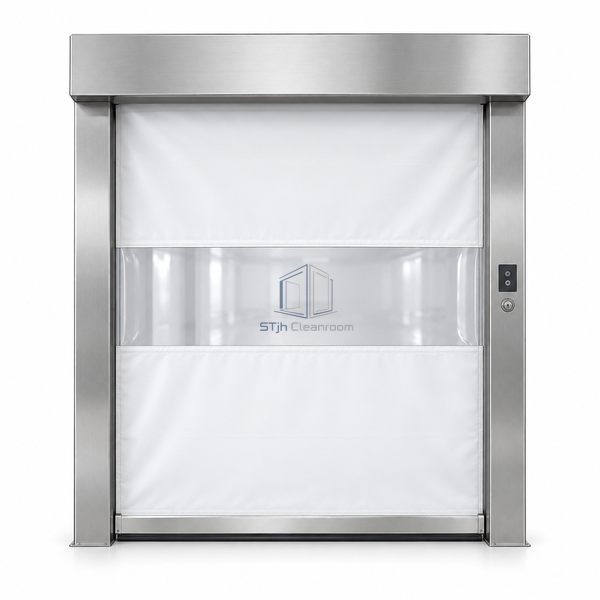

STjh enclosed stainless cleanroom rapid-roll door on white with a pale fabric curtain, full-width vision strip and stainless-clad bottom bar.

STJH-CLEANROOM-HIGH-SPEED-ROLL-UP-DOOR-ENCLOSED-304

Cleanroom High-Speed Roll-Up Door Enclosed 304 Stainless Steel Rapid-Roll

A rapid fabric door with fully enclosed 304 stainless housing and a stainless-clad lower bar.

Removable stainless covers provide access to enclosed side components.
A low-profile bottom bar carries the floor-contact seal.
Vertical curtain storage leaves the adjacent wall free from sliding blades.

Request a Quote Browse Products

Product Introduction

Enclosed stainless side columns and a matching hood surround the flexible rolling curtain. The exposed housing uses 304 stainless steel with a brushed finish, while the lower bar carries stainless cladding and a fabric loop seal against the floor. A variable AC drive raises the curtain vertically into the header. Flush operating controls and a manual release keep projecting components limited at the doorway, with an optional vision section for approaching traffic.

Key Features

Removable stainless covers provide access to enclosed side components.
A low-profile bottom bar carries the floor-contact seal.
Vertical curtain storage leaves the adjacent wall free from sliding blades.

Technical Parameters

Door Movement	Powered vertical roll-up
Maximum Opening	3048 × 3048 mm
Curtain Construction	Two-ply flexible fabric
Frame Material	304 stainless steel
Housing Finish	No. 4 brushed finish
Bottom Bar	Stainless clad, 76.2 mm profile height
Floor Seal	Fabric loop seal
Drive Type	Variable AC drive
Manual Release	Flush-mounted counterbalanced release
Customization	Available for the intended pharmaceutical access route and activation method.

Applications

Pharmaceutical material passages with stainless enclosures.
Clean manufacturing rooms using repeated vertical door access.

Solutions for Your Application

Will exposed operating components create awkward cleaning areas?

The hood and removable side covers enclose the mechanism within stainless surfaces.

Can the curtain be released without normal powered operation?

A flush manual release works with the counterbalanced mechanism.

Available Options

Vulcanized observation windows or a full-width vision section.
Hands-free wave activation.

Planning a Cleanroom High-Speed Roll-Up Door Enclosed 304 Stainless Steel Rapid-Roll specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
