STJH-CLEANROOM-HEPA-TERMINAL-HOUSING-305X305

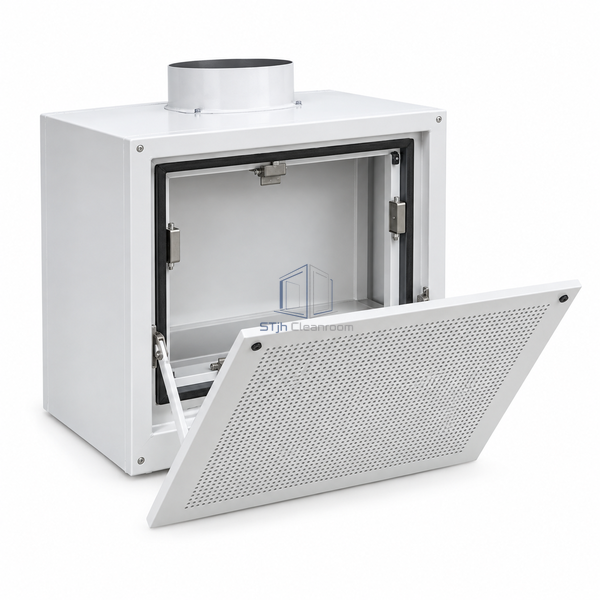

Cleanroom HEPA Terminal Housing 305 x 305 mm

Small welded terminal housing for a separately selected 305 mm square filter.

Compact frame suits individual ceiling filtration points.
Retainers support the element during room-side replacement.

Request a Quote Browse Products

Product Introduction

A392 mm square outer frame surrounds the replaceable-filter opening. The welded housing provides a stable sealing interface, with room-side access and a filter-retaining arrangement that supports the element during fitting.

Key Features

Compact frame suits individual ceiling filtration points.
Retainers support the element during room-side replacement.

Technical Parameters

Filter Face Size	305 x 305 mm
External Frame	392 x 392 mm
Housing Construction	Fully welded
Filter Arrangement	Replaceable terminal element
Gasket Choices	DIN, PU or gel
Filter Clamping	Tool-free clamping mechanism
Element Support	Pre-positioning retainers
Mounting	False ceiling, suspended or T-grid
Air Entry Options	Top or side
Customization	Available for the intended filter interface and ceiling environment.

Applications

Small life-science terminal points
Local hospital ceiling filtration

Solutions for Your Application

The filter and housing need independent replacement schedules.

A replaceable element fits within the permanent welded housing.

Available Options

Perforated diffuser face
Selected gasket interface
