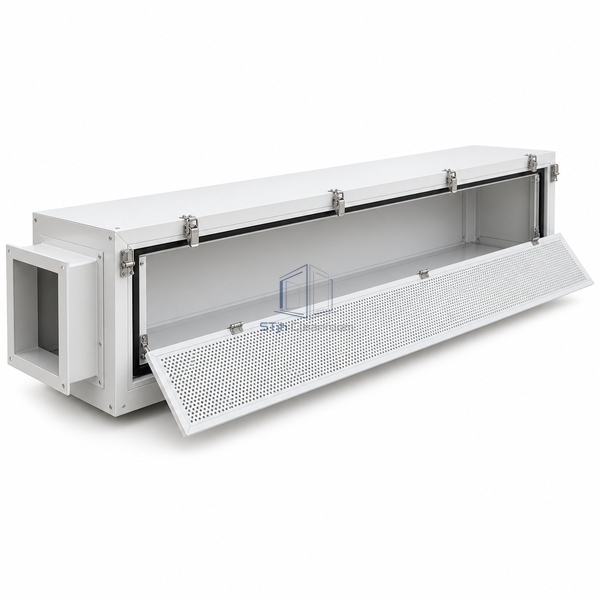

Cleanroom HEPA Terminal Housing 1220 x 610 mm

Long welded terminal housing for room-side replacement of a 1220 x 610 mm filter.

Rectangular frame accommodates a broad replaceable filter.
Retaining hardware supports handling along the long opening.

Request a Quote Browse Products

Product Introduction

An approximately 1307 x 687 mm external frame encloses the elongated filter opening. The long housing supports a broad terminal element while offering top or side air entry to suit the available ceiling route.

Key Features

Rectangular frame accommodates a broad replaceable filter.
Retaining hardware supports handling along the long opening.

Technical Parameters

Filter Format	1220 x 610 mm
Outer Frame Dimensions	1307 x 687 mm
Fabrication	Fully welded housing
Air Inlet	Top or side configuration
Filter Service	Room-side replacement
Seal Interface	DIN, PU or gel options
Retention	Filter pre-positioning supports
Clamping Method	Tool-free retainers
Diffusion Face	Hinged access plate
Customization	Available for the intended large-filter layout and operating environment.

Applications

Large life-science supply modules
Broad controlled-production ceiling filtration

Solutions for Your Application

Replacing a long filter requires support before final clamping.

Pre-positioning retainers hold the element at the sealing interface during fitting.

Available Options

Rectangular side inlet
Four-way or perforated diffusion face
