STJH-CLEANROOM-HEPA-SUPPLY-AIR-TERMINAL-1220X610-1200

Cleanroom HEPA Supply Air Terminal 1220 x 610 mm Ultra-Thin 1200 m³/h

Long shallow terminal filter for broad cleanroom coverage at 1200 m³/h rated flow.

Two-to-one plan shape suits broad rectangular coverage.
Fanless ducted construction keeps moving components upstream.

Request a Quote Browse Products

Product Introduction

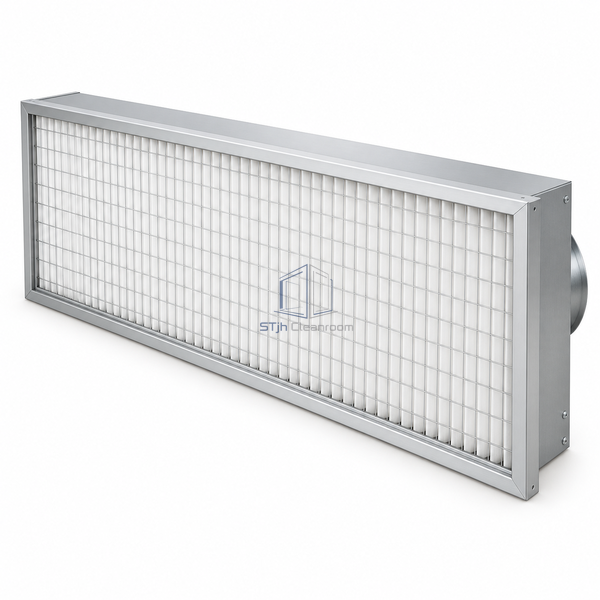

The 1220 x 610 mm aluminum-framed module doubles the compact square footprint along its length. Its 150 mm deep body distributes ducted air across an elongated filtering face, helping coordinate terminal supply with long ceiling bays.

Key Features

Two-to-one plan shape suits broad rectangular coverage.
Fanless ducted construction keeps moving components upstream.

Technical Parameters

External Size	1220 x 610 x 150 mm
Rated Airflow	1200 m³/h
Initial Resistance	≤120 Pa
Count Efficiency	≥99.9% at 0.3 µm
Frame	Extruded aluminum profile
Duct Connection Plate	Steel
Media	Glass-fibre filter paper
Pleat Separation	Hot-melt adhesive
Maximum Operating Humidity	80% RH
Customization	Available for the intended cleanroom ceiling and operating environment.

Applications

Large clean manufacturing ceiling bays
Long low-clearance filtering modules

Solutions for Your Application

A broad supply area would otherwise need several small housings.

The elongated module places a larger filtering footprint within one perimeter frame.

Available Options

Custom duct inlet arrangement
Tailored frame dimensions

Planning a Cleanroom HEPA Supply Air Terminal 1220 x 610 mm Ultra-Thin 1200 m³/h specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
