A laminate face is not preferred in the cleaning area.
A stainless face provides a continuous exposed metal finish across the door leaf.
STJH-CLEANROOM-FLOOR-SPRING-DOOR-SS-950
Cleanroom Floor-Spring Door 950 mm Stainless Steel

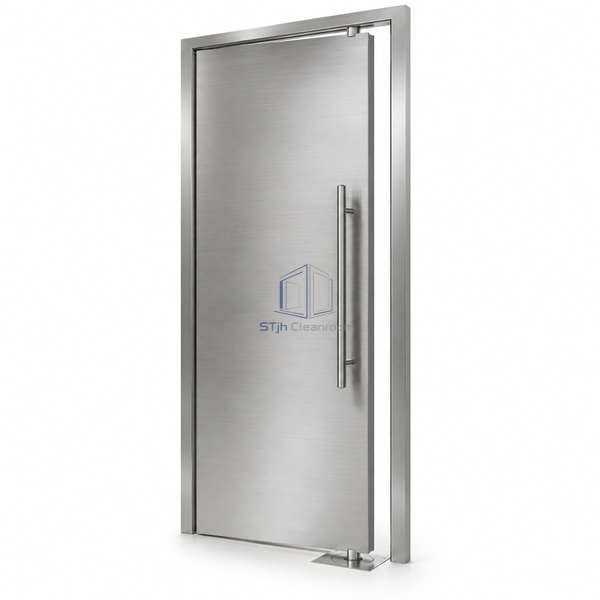

A stainless-faced pivot door with floor-spring closure and a 950 x 2100 mm wall-hole format.
- Stainless facing suits a metal-surface cleaning regime.
- A 950 mm wall hole offers more width within a single pivoted leaf.
- The head remains free of an exposed closer arm.
Product Introduction
This model combines the wider single-leaf floor-spring format with an exposed stainless face. The closing mechanism acts through the lower pivot, while the top pivot locates the leaf without an upper closer arm. Rubber gasketing surrounds the panel and a stainless handle completes the visible operating hardware. The door-hole dimensions identify the frame interface. The actual walking clearance and floor-cover detail depend on the final pivot position and installation, making floor coordination especially important for this style of door.
Key Features
- Stainless facing suits a metal-surface cleaning regime.
- A 950 mm wall hole offers more width within a single pivoted leaf.
- The head remains free of an exposed closer arm.
Technical Parameters
| Nominal Wall Hole | 950 x 2100 mm |
|---|---|
| Door Panel | Single leaf |
| Surface Material | Stainless steel |
| Closing Device | Floor spring |
| Pivot Arrangement | Top and bottom |
| Edge Sealing | Rubber gasket |
| Pull Hardware | Stainless handle |
| Installation Interface | Framed wall opening and floor pocket |
| Wall-Panel Sizes | 50, 75 or 100 mm |
| Customization | Available for the intended route and surrounding floor conditions. |
Applications
- Frequently cleaned interior staff routes
- Hygienic entrances with concealed lower closing hardware
Solutions for Your Application
The floor device may be difficult to reach after installation.
Keep its cover accessible within the finished floor detail so adjustment and servicing remain possible.
Available Options
- Stainless pull geometry
- Frame arrangement for the partition thickness
- Opening configuration suited to circulation
Planning a Cleanroom Floor-Spring Door 950 mm Stainless Steel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
