STJH-CLEANROOM-EXHAUST-AIR-GRILLE-500X500

Cleanroom Exhaust Air Grille 500 x 500 mm Stainless Steel

Square stainless extract grille sized for serviceable exhaust from medium controlled rooms.

Square format fits balanced wall-panel layouts.
Stainless room-side components tolerate routine hygienic cleaning.
Separate fixing and face frames simplify front removal.

Request a Quote Browse Products

Product Introduction

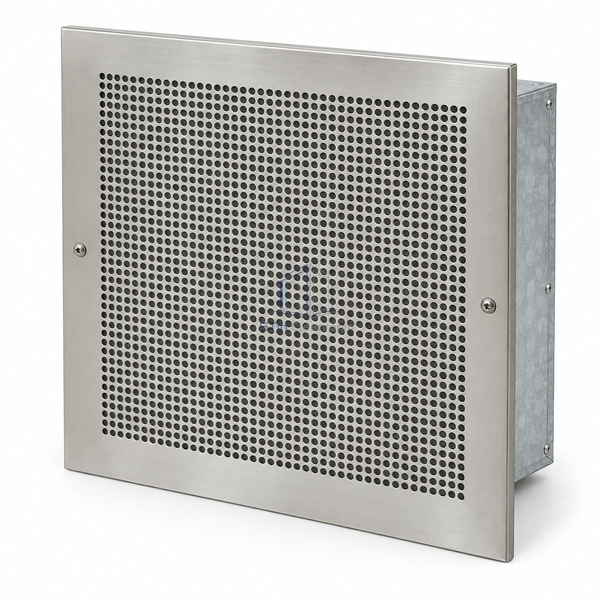

A 500 mm square nominal opening is surrounded by a 587 mm stainless face. Behind the perforated panel, a metal mesh separator provides an accessible collection point for airborne textile fibres carried into the exhaust stream.

Key Features

Square format fits balanced wall-panel layouts.
Stainless room-side components tolerate routine hygienic cleaning.
Separate fixing and face frames simplify front removal.

Technical Parameters

Nominal Grille Size	500 x 500 mm
External Face Size	587 x 587 mm
Face Plate	AISI 316L stainless steel
Separator Material	AISI 316L stainless steel
Support Frame Material	Galvanized steel
Filter Form	Metal mesh fluff separator
Mesh Size	0.2 mm
Unit Weight	Approximately 11.0 kg
Mounting Location	Wall exhaust duct opening
Customization	Frame and separator arrangements can be customized for the intended use.

Applications

Surgical room wall extraction
Pharmaceutical support-room exhaust

Solutions for Your Application

A narrow outlet does not suit the available square wall bay.

The 587 mm square face presents a proportionate cover around the 500 mm opening.

Routine maintenance should not disturb the duct connection.

Room-side panel removal leaves the fixed duct sleeve in position.

Available Options

Mesh-free extract face
Alternative mounting arrangement

Planning a Cleanroom Exhaust Air Grille 500 x 500 mm Stainless Steel specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
