STJH-CLEANROOM-EXHAUST-AIR-GRILLE-400X200

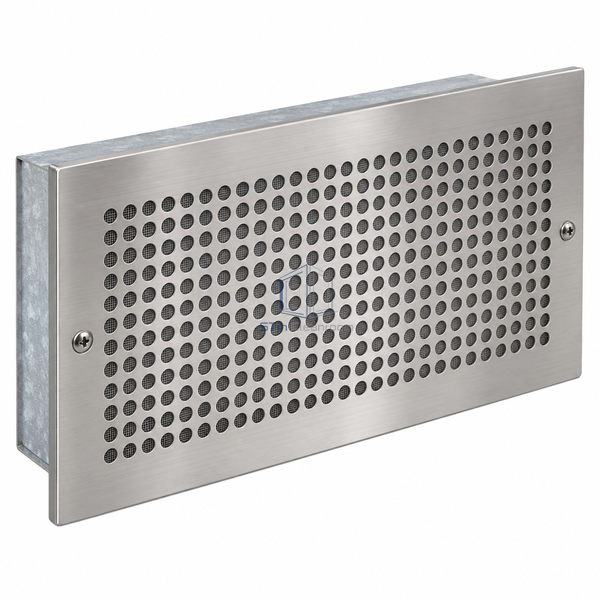

Cleanroom Exhaust Air Grille 400 x 200 mm Stainless Steel

Compact stainless exhaust grille with a removable perforated front and a textile-fibre mesh separator.

Shallow landscape face suits low-level wall extraction.
Room-side screw access releases the front for cleaning.
Metal mesh intercepts clothing fibres before they enter the duct.

Request a Quote Browse Products

Product Introduction

The low rectangular face connects a 400 x 200 mm exhaust point to the room. Its stainless front, grille frame and mesh insert form a serviceable assembly supported by a galvanized fixing frame.

Key Features

Shallow landscape face suits low-level wall extraction.
Room-side screw access releases the front for cleaning.
Metal mesh intercepts clothing fibres before they enter the duct.

Technical Parameters

Nominal Opening	400 x 200 mm
Overall Face	487 x 287 mm
Front Material	AISI 316L stainless steel
Grille Frame	AISI 316L stainless steel
Fixing Frame	Galvanized steel
Separator	Stainless steel mesh
Mesh Opening	0.2 mm
Approximate Weight	6.5 kg
Front Removal	Screw-retained detachable panel
Customization	Available to suit the room layout and cleaning environment.

Applications

Low-level hospital exhaust outlets
Compact controlled-room extract points

Solutions for Your Application

Textile lint can accumulate in inaccessible extract ducts.

An accessible mesh layer collects fibres at the room interface.

A fixed grille is difficult to clean behind.

The detachable face exposes the separator without dismantling the wall duct.

Available Options

Version without mesh separator
Tailored fixing frame
