A smaller opening leaves too little maneuvering space for equipment.
The 1800 mm wall-hole format provides a wider starting envelope for the equipment-route layout.
STJH-CLEANROOM-EQUIPMENT-ACCESS-DOOR-REINFORCED-1800

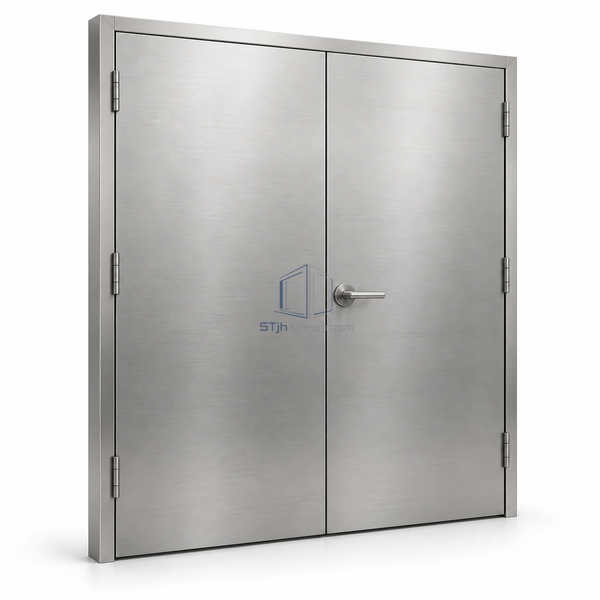

Cleanroom Equipment Access Door 1800 mm Stainless Reinforced
A wide 1800 mm stainless double door with reinforced framing for larger equipment movements.
- The wide pair accommodates larger equipment envelopes.
- Stainless faces give a different cleaning surface from coated-steel alternatives.
- A common reinforced frame keeps both leaves within one coordinated opening.
Product Introduction
Stainless-faced paired leaves provide a wider equipment route within a strengthened building frame. The wall-hole dimensions are 1800 x 2100 mm and each leaf uses a 40 mm construction. The broad opening and exposed stainless surfaces suit equipment movement through regularly cleaned controlled partitions. Conventional hinges support both leaves at the outer jambs. Available clearance must be checked at the hinges, center joint and open leaf positions, rather than assumed from the wall-hole width alone.
Key Features
- The wide pair accommodates larger equipment envelopes.
- Stainless faces give a different cleaning surface from coated-steel alternatives.
- A common reinforced frame keeps both leaves within one coordinated opening.
Technical Parameters
| Door-Hole Size | 1800 x 2100 mm |
|---|---|
| Leaf Thickness | 40 mm |
| Leaf Count | Two |
| Face Material | Stainless steel |
| Frame Construction | Strengthened |
| Leaf Movement | Hinged |
| Meeting Joint | Central |
| Wall Options | 50 or 90 mm |
| Access Hardware | Ordinary handle-lock arrangement |
| Customization | Available for the equipment dimensions and operating environment. |
Applications
- Larger process-equipment installation routes
- Regularly cleaned material-support corridors
Solutions for Your Application
Frequent cleaning makes the exposed surface material important.
The exposed stainless faces accept cleaning methods selected for stainless steel and the room's operating conditions.
Available Options
- Stainless handle options
- Overhead closing hardware
- Frame sizing for the chosen wall build
Planning a Cleanroom Equipment Access Door 1800 mm Stainless Reinforced specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
