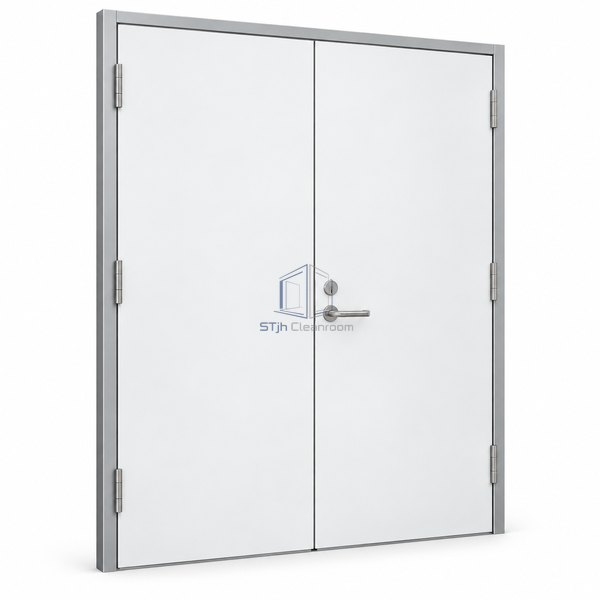

STjh 1500 mm double equipment access door with white steel leaves and a reinforced frame on white.

STJH-CLEANROOM-EQUIPMENT-ACCESS-DOOR-REINFORCED-1500

Cleanroom Equipment Access Door 1500 mm Reinforced Double

A 1500 mm paired coated-steel door with a reinforced frame for trolley and equipment access.

Paired leaves divide the moving panel width evenly.
A strengthened surround supports an equipment-oriented opening.
Coated faces provide a straightforward opaque interior finish.

Request a Quote Browse Products

Product Introduction

Two 40 mm leaves share a strengthened frame and form a balanced double-door opening. The 1500 x 2100 mm wall-hole format is intended for compact production equipment and trolley routes where a single staff door would be restrictive. Coated galvanized steel provides opaque exposed faces. When both leaves are opened, equipment can use the available passage across the center joint. The frame geometry and leaf swing still need to be included when assessing the actual clearance for a machine or transport cart.

Key Features

Paired leaves divide the moving panel width evenly.
A strengthened surround supports an equipment-oriented opening.
Coated faces provide a straightforward opaque interior finish.

Technical Parameters

Wall-Hole Width	1500 mm
Wall-Hole Height	2100 mm
Panel Thickness	40 mm door leaf
Door Layout	Double hinged leaf
Surface	Coated galvanized steel
Frame Design	Strengthened
Opening Type	Swing
Wall Thickness Options	50 or 90 mm
Hardware Format	Conventional handle and latch
Customization	Available for the actual equipment-access requirements.

Applications

Trolley routes through production support walls
Compact machine installation and replacement access

Solutions for Your Application

Equipment cannot pass through a normal single-leaf opening.

The paired format opens across the full wall hole, subject to the frame and swing clearances.

A very wide single panel takes up too much swing space.

Two leaves split the opening into shorter individual swing arcs.

Available Options

Upper door closers
Entry hardware selection
Standard coated-metal finish

Planning a Cleanroom Equipment Access Door 1500 mm Reinforced Double specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
