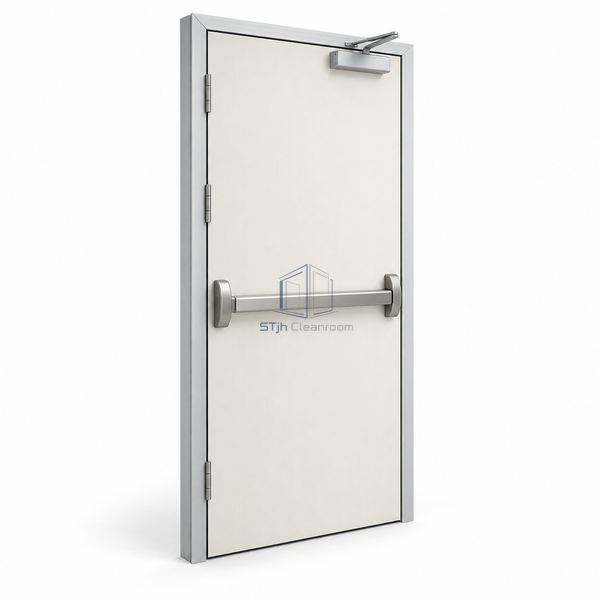

STjh 950 mm HPL cleanroom exit door with a plain laminate leaf, panic bar and exposed closer against white.

STJH-CLEANROOM-EMERGENCY-EXIT-DOOR-HPL-950

Cleanroom Emergency Exit Door 950 mm HPL Panic-Bar

An HPL-faced single exit door for a 950 x 2100 mm wall opening, equipped with a push-type panic bar.

Defined door-hole size helps coordinate modular wall openings.
Laminate facing gives a practical alternative to an all-metal leaf.
Surface-accessible closing hardware simplifies adjustment.

Request a Quote Browse Products

Product Introduction

This laminate-faced doorset retains a conventional single swing leaf while changing the escape-side operating hardware to a push bar. It is sized around a 950 x 2100 mm door hole, which allows the frame to be coordinated with the surrounding cleanroom panel construction. An exposed closer sits above the leaf. The HPL face provides a smooth nonmetallic finish for staff circulation areas, while the frame and edge profiles protect the perimeter of the panel. The stated wall opening is not the finished clear passage width.

Key Features

Defined door-hole size helps coordinate modular wall openings.
Laminate facing gives a practical alternative to an all-metal leaf.
Surface-accessible closing hardware simplifies adjustment.

Technical Parameters

Door-Hole Width	950 mm
Door-Hole Height	2100 mm
Leaf Count	One
Face Panel	HPL
Opening Mode	Hinged swing
Panic Hardware	Push-type bar
Closing Device	Exposed door closer
Supported Panel Walls	50 or 100 mm
Installation Format	Framed wall opening
Customization	Available for the intended personnel route and wall system.

Applications

Laminate-finished cleanroom staff exits
Hygienic access corridors requiring a panic-bar leaf

Solutions for Your Application

The drawing confuses wall-hole width with usable passage.

Keep the 950 mm dimension assigned to the wall hole and establish the remaining passage from the selected frame and open leaf.

The door needs an exit device without changing to stainless facing.

This HPL door combines a laminate-faced panel with a push bar and exposed closer.

Available Options

Handle or cylinder arrangement on the entry side
Compatible 50 or 100 mm panel-wall frame
Selected standard HPL finish

Planning a Cleanroom Emergency Exit Door 950 mm HPL Panic-Bar specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
