A surface magnet would project into the passage.
The recessed body locates within the prepared frame.
STJH-CLEANROOM-ELECTROMAGNETIC-DOOR-LOCK-RECESSED-SLIDING

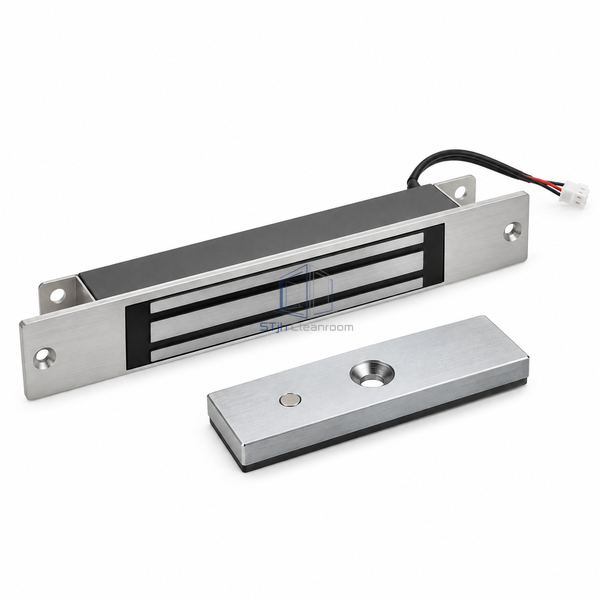

Cleanroom Electromagnetic Door Lock Recessed for Sliding Doors
Keep the locking body within the frame using a recessed magnet for a single sliding door.
- Recessed body reduces exposed hardware around the opening.
- Automatic voltage selection accommodates either supported DC supply.
- Sealed electronics protect the internal assembly.
Product Introduction
This electromagnetic lock is arranged for recess mounting at a sliding-door frame. Its compact body sits within the prepared opening, leaving the working face positioned to meet the associated armature as the leaf closes. Sealed electronics and automatic voltage selection support a low-voltage installation. The recessed format reduces the projection of locking hardware into the access route while retaining an electrically controlled release connection to the door-control system.
Key Features
- Recessed body reduces exposed hardware around the opening.
- Automatic voltage selection accommodates either supported DC supply.
- Sealed electronics protect the internal assembly.
Technical Parameters
| Mounting Method | Recessed |
|---|---|
| Door Type | Single sliding leaf |
| Locking Action | Electromagnetic attraction |
| Nominal Holding Force | 500 lb |
| Operating Supply | Automatic 12/24 VDC selection |
| Electronics | Sealed construction |
| Contact Assembly | Magnet with mating armature |
| Control Interface | Switched low-voltage power |
| Visible Hardware | Recessed working face |
| Customization | Pocket preparation and mating hardware can be adapted to the sliding-door frame. |
Applications
- Sliding cleanroom access leaves.
- Narrow frame installations requiring concealed lock bodies.
Solutions for Your Application
Existing control supplies differ between installations.
Automatic 12/24 VDC selection supports either stated supply.
Available Options
- Compatible armature mounting accessories.
- Frame-specific recess preparation.
Planning a Cleanroom Electromagnetic Door Lock Recessed for Sliding Doors specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
