The leaf is shut but the bolt may not have engaged.
Use the separate bolt-position monitoring signal.
STJH-CLEANROOM-ELECTRIC-DROP-BOLT-LOCK-STANDARD-MONITORED

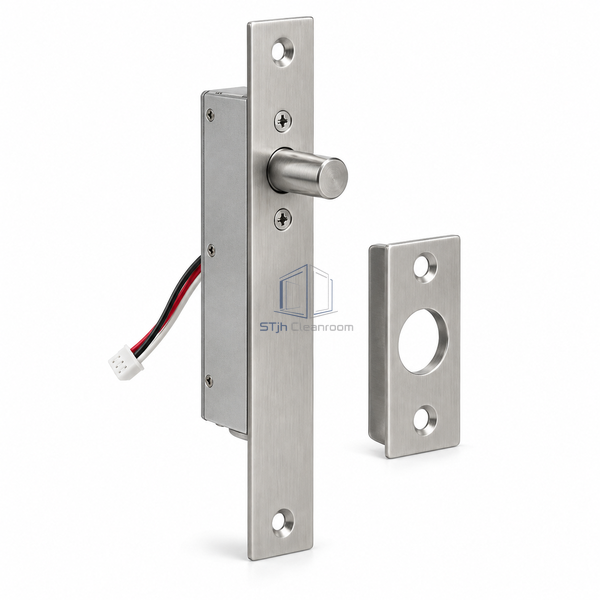

Cleanroom Electric Drop Bolt Lock Monitored Stainless Steel
Monitor both door position and bolt engagement with a stainless electric drop-bolt assembly.
- Separate monitoring supports more informative interlock feedback.
- Horizontal or vertical installation accommodates different preparations.
- A stainless pin provides a positive mechanical engagement.
Product Introduction
The electric drop bolt uses a cylindrical stainless pin that enters a corresponding strike opening when the leaf is correctly positioned. Its body fits into a mortise preparation and can be oriented horizontally or vertically. Separate monitoring functions report the door and bolt states to connected controls. This arrangement allows a cleanroom access system to distinguish a closed leaf from a fully engaged bolt without adding an exposed mechanical lock case.
Key Features
- Separate monitoring supports more informative interlock feedback.
- Horizontal or vertical installation accommodates different preparations.
- A stainless pin provides a positive mechanical engagement.
Technical Parameters
| Bolt Diameter | 12.7 mm |
|---|---|
| Bolt Material | Stainless steel |
| Supply Range | 12–24 VDC |
| Nominal Holding Force | 10,000 N |
| Mounting | Mortised |
| Orientation | Horizontal or vertical |
| Monitoring | Door and bolt position |
| Mating Hardware | Bolt strike plate |
| Locking Action | Electric deadbolting |
| Customization | Strike preparation and wiring can suit the intended access-control installation. |
Applications
- Monitored cleanroom swing doors.
- Door groups requiring positive bolt-state feedback.
Solutions for Your Application
The header and stile provide different mounting space.
The mortise body supports horizontal or vertical orientation.
Available Options
- Compatible strike preparation.
- Door-control interface cabling.
Planning a Cleanroom Electric Drop Bolt Lock Monitored Stainless Steel specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
