A lamp is easily missed during handling work.
The integrated buzzer adds an audible cue.
STJH-CLEANROOM-DOOR-STATUS-INDICATOR-LED-SOUNDER

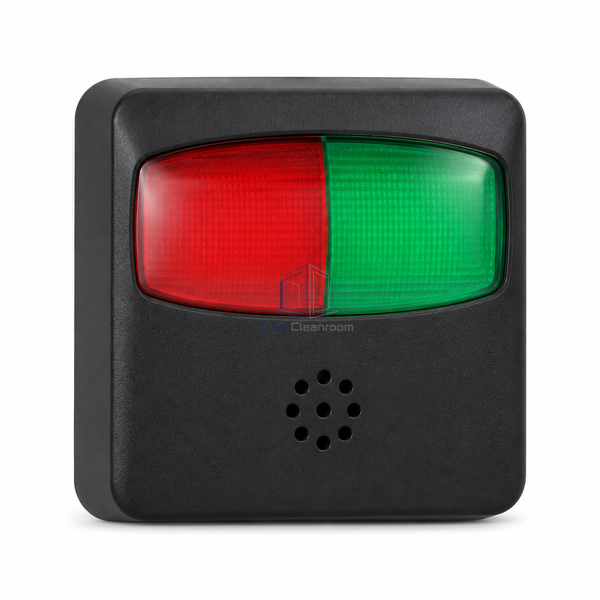

Cleanroom Door Status Indicator LED and Audible
Add an audible door warning to red-green visual indication at a controlled access point.
- Audible output draws attention when users face away.
- Steady or intermittent modes allow a distinct warning pattern.
- Combined signals reduce the need for a separate sounder.
Product Introduction
The station incorporates a buzzer alongside its red-green LED indication. Connected door-state signals determine when the warning operates, and local configuration provides steady or intermittent behaviour. The combined housing is intended for positions where a visual lamp alone may be missed. This selected configuration concentrates on indication and sound rather than a request button, allowing the request function to remain with a separate switch or credential reader.
Key Features
- Audible output draws attention when users face away.
- Steady or intermittent modes allow a distinct warning pattern.
- Combined signals reduce the need for a separate sounder.
Technical Parameters
| Visual Output | Red and green LED |
|---|---|
| Audible Output | Integrated buzzer |
| Operating Supply | 10–24 VAC/DC |
| Visual Mode | Steady or flashing |
| Sound Mode | Continuous or intermittent |
| Warning Trigger | Connected door-open state |
| Mounting | Wall station |
| Selected Interface | Light and sounder without request button |
| Mode Selection | Local jumper configuration |
| Customization | Signal behaviour and placement can suit the intended access-monitoring use. |
Applications
- Material routes where staff face away from indicators.
- Door-open warning points in controlled suites.
Solutions for Your Application
A continuous warning is unsuitable for the location.
Intermittent mode provides a different sound pattern.
Available Options
- Steady indication setting.
- Intermittent warning setting.
- Compatible door-state input.
Planning a Cleanroom Door Status Indicator LED and Audible specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
