STJH-CLEANROOM-COVE-BASE-SKIRTING-R60-STANDARD

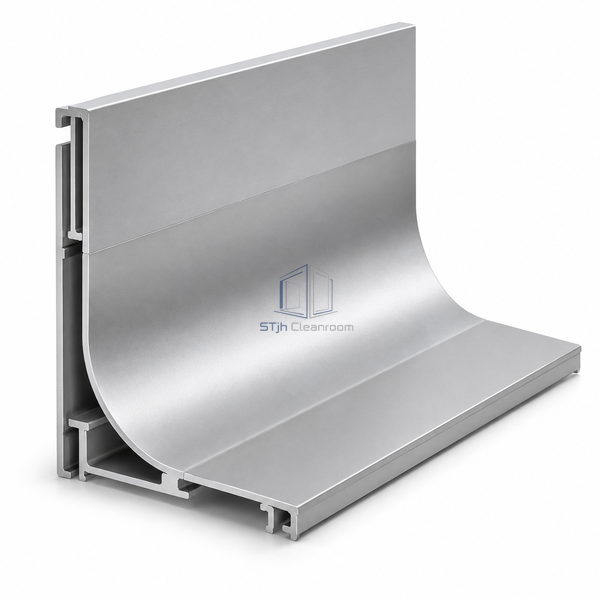

Cleanroom Cove Base Skirting R60 Standard Aluminum

An exposed aluminum R60 cove for the cleanroom wall-to-floor junction.

The metal face remains the exposed cleaning surface.
A 60 mm radius rounds the floor junction.
Separate floor and curved components form a coordinated base assembly.

Request a Quote Browse Products

Product Introduction

The floor profile and support carry a curved metal connector above the junction. The selected arrangement leaves the metal cove exposed, giving a defined aluminum transition instead of wrapping sheet flooring over the curved support.

Key Features

The metal face remains the exposed cleaning surface.
A 60 mm radius rounds the floor junction.
Separate floor and curved components form a coordinated base assembly.

Technical Parameters

Cove Radius	60 mm
Floor Profile Dimension A	33.5 mm
Floor Profile Dimension B	24 mm
Alloy	6060 aluminum
Temper	T6
Finish Options	Natural anodized or painted
Exposed Face	Aluminum cove
Installation Position	Wall-to-floor
Assembly	Floor profile, support and curved connector
Customization	Available for the intended application and operating environment.

Applications

Cleanroom floor perimeters with metal coving
Wall bases without sheet-flooring wrap

Solutions for Your Application

The floor detail does not include a flexible covering over the cove.

The aluminum connector supplies the exposed curved finish itself.

A sharp wall-floor junction is difficult to reach with a cleaning tool.

The R60 sweep opens the transition into an accessible curve.

Available Options

Anodized metal face
Painted cove finish

Planning a Cleanroom Cove Base Skirting R60 Standard Aluminum specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
