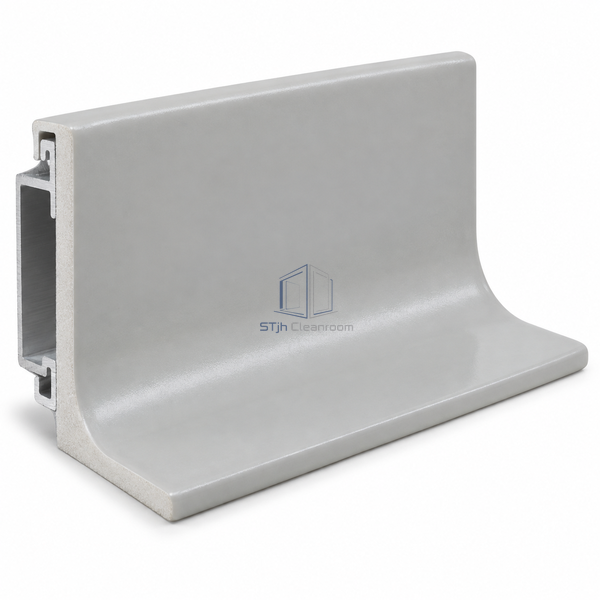

STJH-CLEANROOM-COVE-BASE-SKIRTING-H64-EPOXY

Cleanroom Cove Base Skirting H64 Epoxy-Resin

An H64 base profile for forming an integral epoxy-resin cleanroom floor cove.

The resin finish forms the exposed perimeter surface.
A 64 mm base detail suits a compact epoxy upstand.
The metal profile provides a defined interface beneath the finish.

Request a Quote Browse Products

Product Introduction

The aluminum base detail supports a poured-resin rise at the wall perimeter. Its 64 mm height and 24 x 33.5 mm floor member establish the interface for an epoxy finish, so the exposed junction belongs to the resin floor system.

Key Features

The resin finish forms the exposed perimeter surface.
A 64 mm base detail suits a compact epoxy upstand.
The metal profile provides a defined interface beneath the finish.

Technical Parameters

Base Height	64 mm
Floor Member Dimension A	24 mm
Floor Member Dimension B	33.5 mm
Support Material	Aluminum
Finish Material	Epoxy resin
Application Method	Poured resin finish
Transition Form	Integral resin cove
Location	Floor perimeter
Assembly Role	Support for resin upstand
Customization	Available to suit the intended application and operating environment.

Applications

Epoxy-floored cleanroom perimeters
Monolithic resin wall-base transitions

Solutions for Your Application

An exposed trim joint would interrupt the resin floor perimeter.

The epoxy finish forms the visible rise over the base detail.

The upstand needs a controlled starting height.

The H64 profile establishes the selected base geometry.

Available Options

Compatible epoxy finish
Base lengths for the room perimeter

Planning a Cleanroom Cove Base Skirting H64 Epoxy-Resin specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
