STJH-CLEANROOM-CEILING-SUSPENSION-ROD-3P8-TURNBUCKLE

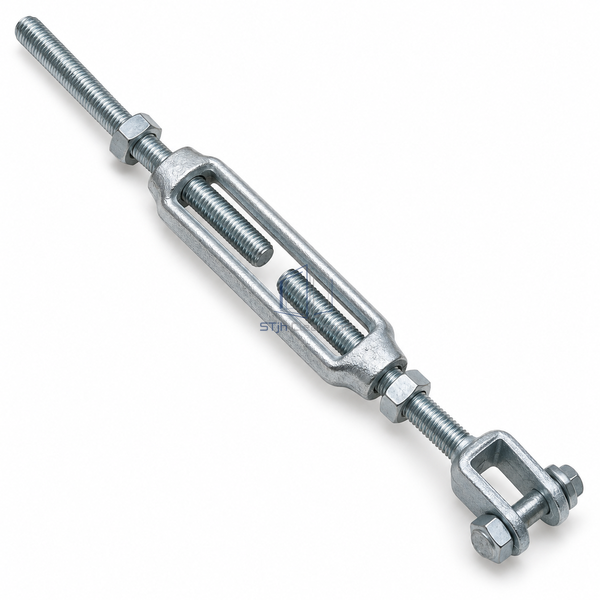

Cleanroom Ceiling Suspension Rod 3/8-16 Turnbuckle-Adjusted Set

A threaded starter-rod and turnbuckle set for fine cleanroom ceiling levelling.

The central turnbuckle is accessible for local levelling.
Left- and right-hand engagement produces opposed adjustment.
A defined starter section simplifies the suspended connection.

Request a Quote Browse Products

Product Introduction

A 203.2 mm starter rod works with a 152.4 mm turnbuckle body and opposing thread directions. Rotating the central adjuster changes the effective suspension length, making small elevation corrections without treating the assembly as one fixed rod.

Key Features

The central turnbuckle is accessible for local levelling.
Left- and right-hand engagement produces opposed adjustment.
A defined starter section simplifies the suspended connection.

Technical Parameters

Connection Thread	3/8-16
Starter Rod Length	203.2 mm
Turnbuckle Body Length	152.4 mm
Material	Zinc-plated steel
Thread Arrangement	Left and right hand
Adjustment Component	Turnbuckle
Nominal Rod Diameter	9.525 mm
Typical Grid Spacing	1219.2 mm
Installation	Ceiling suspension set
Customization	Available to suit the intended application and operating environment.

Applications

Ceiling grids needing precise height correction
Large cleanroom suspension layouts

Solutions for Your Application

A completed bay needs a small elevation change.

The central turnbuckle adjusts the effective drop locally.

The installer needs to distinguish the levelling set from a plain hanger.

The exposed adjustment body makes the function readily identifiable.

Available Options

Compatible upper suspension rods
Matching grid attachments
