STJH-CLEANROOM-CEILING-SUSPENSION-ROD-3P8-DIRECT

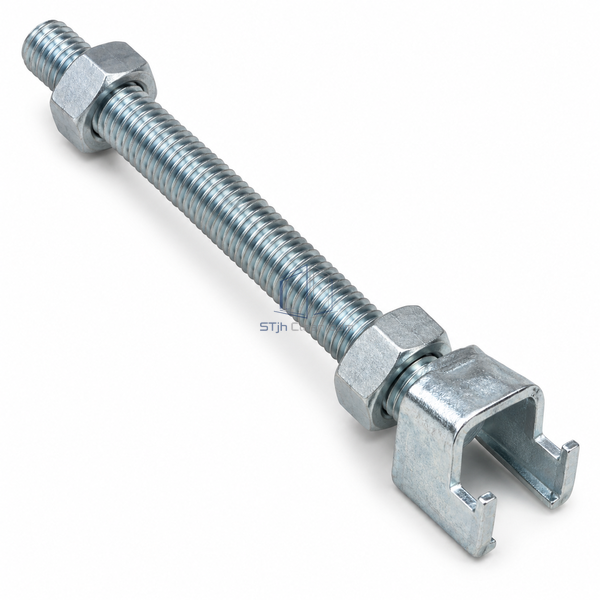

Cleanroom Ceiling Suspension Rod 3/8-16 Heavy-Duty

A 3/8-16 direct threaded hanger for more demanding cleanroom ceiling suspension arrangements.

The 9.525 mm nominal shank has a larger section than standard-duty rods.
Sixteen threads per inch use the matching heavy-grid hardware.
A straight rod avoids introducing a separate turnbuckle body.

Request a Quote Browse Products

Product Introduction

The larger steel shank provides a visibly more substantial suspension member than a quarter-inch rod. Its imperial coarse thread mates with the heavy-duty grid connection, keeping the connection straight while leaving the height setting accessible at the nuts.

Key Features

The 9.525 mm nominal shank has a larger section than standard-duty rods.
Sixteen threads per inch use the matching heavy-grid hardware.
A straight rod avoids introducing a separate turnbuckle body.

Technical Parameters

Thread Size	3/8-16
Nominal Diameter	9.525 mm
Thread Frequency	16 threads per inch
Rod Material	Steel
Protective Finish	Zinc plated
Duty	Heavy-duty grid suspension
Connection Method	Direct heavy-grid connector
Level Adjustment	Nuts on threaded rod
Member Form	Straight threaded shank
Customization	Available based on the intended application and operating environment.

Applications

Heavier cleanroom ceiling layouts
Grid installations with concentrated service equipment

Solutions for Your Application

The standard suspension diameter is unsuitable for the selected heavy grid.

The 3/8-16 member matches the larger suspension connection arrangement.

A bulky adjuster would reduce clearance above the grid.

Direct nut adjustment preserves a compact hanger profile.

Available Options

Rod length selection
Compatible heavy-grid connector sets
