STJH-CLEANROOM-CEILING-AIR-DIFFUSER-600X600

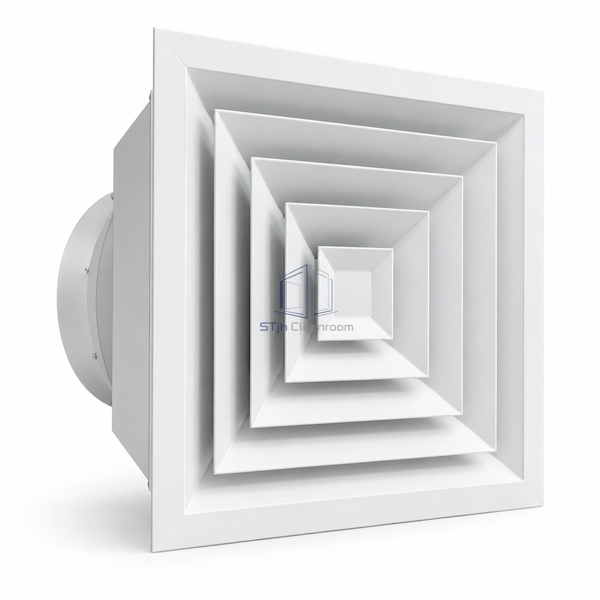

Cleanroom Ceiling Air Diffuser 600 x 600 mm Square Cone

600 mm modular ceiling diffuser with broad four-way cone discharge.

Full modular face integrates into a standard square ceiling bay.
Removable cone core supports room-side access.

Request a Quote Browse Products

Product Introduction

The larger square face coordinates with common 600 mm T-bar layouts. Formed concentric cones divide the supply into four horizontal directions, and the removable centre gives access to the air inlet above.

Key Features

Full modular face integrates into a standard square ceiling bay.
Removable cone core supports room-side access.

Technical Parameters

Face Module	600 x 600 mm
Ceiling Opening	549 x 549 mm
Air Pattern	Four-way horizontal
Face Construction	Formed metal square cones
Surface	White coating
Ceiling Mount	T-bar lay-in
Core Access	Removable core
Inlet Form	Circular duct neck
Additional Cone	Optional fourth cone
Customization	Available to match the ceiling module and intended distribution duty.

Applications

Modular support-area ceilings
Controlled production comfort ventilation

Solutions for Your Application

A small diffuser leaves an awkward infill within the ceiling grid.

The full 600 mm module occupies the standard square bay.

Available Options

Insulated backpan
Fourth cone configuration

Planning a Cleanroom Ceiling Air Diffuser 600 x 600 mm Square Cone specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
