STJH-CLEANROOM-CEILING-AIR-DIFFUSER-300X300

Cleanroom Ceiling Air Diffuser 300 x 300 mm Square Cone

Small square cone diffuser for four-way supply in compact ceiling layouts.

Four discharge sides spread supply around the outlet.
Compact square face fits small ceiling modules.

Request a Quote Browse Products

Product Introduction

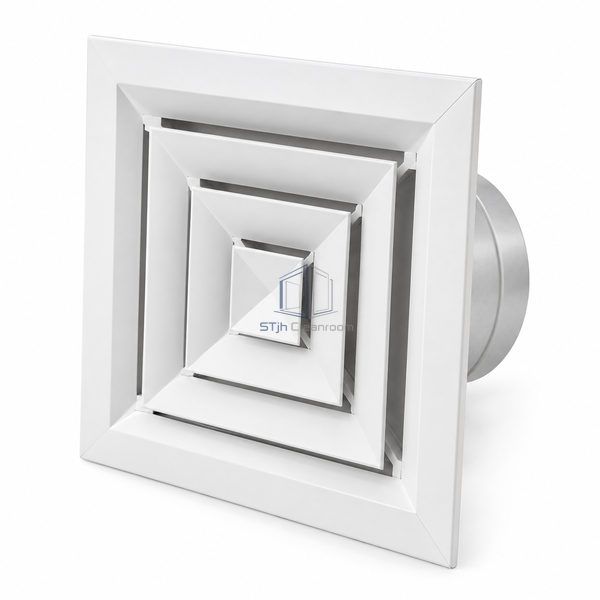

The 300 mm square face uses stepped formed-metal cones to turn supply air outward along the ceiling. A removable core provides access to the neck, allowing the compact terminal to be serviced from the room side.

Key Features

Four discharge sides spread supply around the outlet.
Compact square face fits small ceiling modules.

Technical Parameters

Nominal Face Size	300 x 300 mm
Ceiling Opening	249 x 249 mm
Discharge Pattern	Four-way horizontal
Construction	Formed steel cone assembly
Standard Finish	White coating
Core	Removable
Mounting Options	Lay-in or surface
Air Connection	Circular neck
Balancing Option	Compatible neck damper
Customization	Available for the intended ceiling type and room layout.

Applications

Small gowning support rooms
Compact controlled laboratories

Solutions for Your Application

One-direction discharge leaves other sides of a small room underserved.

The square cone directs supply into four surrounding ceiling zones.

Available Options

Sectorizing baffles
Neck balancing damper

Planning a Cleanroom Ceiling Air Diffuser 300 x 300 mm Square Cone specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
