STJH-CLEANROOM-AIR-DISTRIBUTION-PLENUM-600-DN315

Cleanroom Air Distribution Plenum Box 600 mm High-Capacity Diffuser with DN315 Spigot

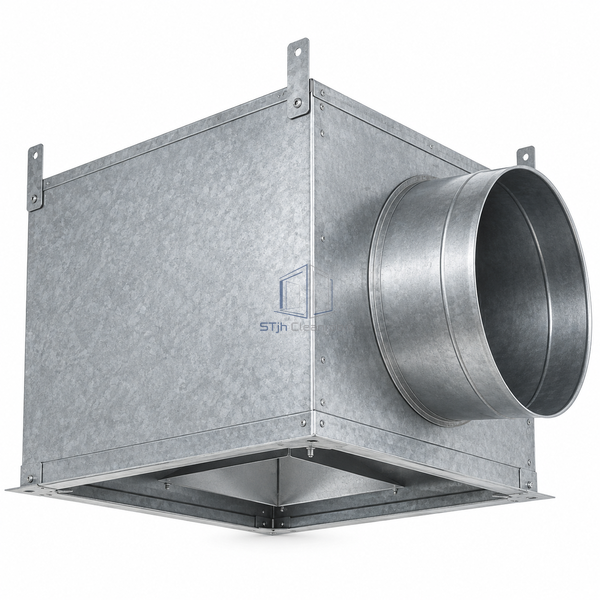

Large deep plenum connecting a DN315 branch to a 600 mm ceiling diffuser.

Large side collar supports a high-volume branch connection.
Deep chamber accommodates equalisation above a broad face.

Request a Quote Browse Products

Product Introduction

The 567 mm square casing and 410 mm height provide a substantial distribution chamber. A 313 mm actual spigot admits the branch airflow horizontally, while the broad bottom opening mates with the large diffuser assembly.

Key Features

Large side collar supports a high-volume branch connection.
Deep chamber accommodates equalisation above a broad face.

Technical Parameters

Diffuser Module	600 mm nominal
Box Width	567 mm
Box Height	410 mm
Spigot Outside Diameter	313 mm
Nominal Duct Connection	DN315
Inlet Direction	Horizontal
Body Material	Galvanized steel
Air Equalisation	Supply-air equalising element
Approximate Assembly Weight	13.2 kg
Customization	Available to suit the ceiling module and distribution duty.

Applications

Large production support-area diffusers
Main branch terminal distribution

Solutions for Your Application

A large diffuser should not be fed through an undersized collar.

The DN315 inlet preserves a broad circular connection into the terminal chamber.

Available Options

Acoustically lined casing
Inlet balancing damper
