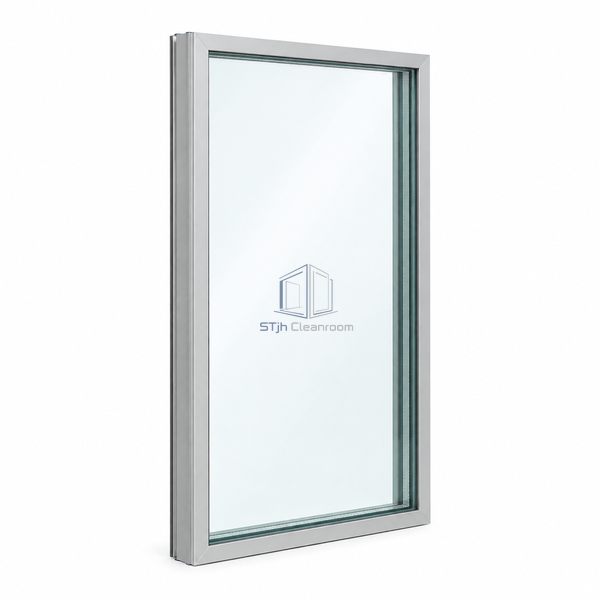

STjh 500 x 800 mm large double-glazed door vision panel on white, with an elongated clear viewing area and a shallow retaining edge.

STJH-CLEANROOM-ACCESS-DOOR-OBSERVATION-WINDOW-500X800-DG

Cleanroom Access Door Observation Window 500 x 800 mm Large Double-Glazed Vision Panel

A large 500 x 800 mm double-glazed vision component for an extended view through a cleanroom door.

An 800 mm-high viewing area provides an extended vertical field.
The 500 mm width increases lateral visibility through the leaf.
A defined 500 x 800 mm component footprint gives the leaf fabricator a specific perimeter for the larger glazed opening.

Request a Quote Browse Products

Product Introduction

The largest of these three standard door lights uses a 500 mm width and an 800 mm height. Its long portrait glazing area is built into a 50 mm cleanroom door leaf using the specified 6 mm glass in a double-glazed arrangement. The larger footprint gives observers more room to see approaching traffic at different positions. The product remains a window component for integration within a door, with leaf reinforcement, hardware and the surrounding entrance assembly supplied separately.

Key Features

An 800 mm-high viewing area provides an extended vertical field.
The 500 mm width increases lateral visibility through the leaf.
A defined 500 x 800 mm component footprint gives the leaf fabricator a specific perimeter for the larger glazed opening.

Technical Parameters

Vision Width	500 mm
Vision Height	800 mm
Glass Thickness	6 mm
Glazing Build	Double glazed
Host Leaf Depth	50 mm
Outline Proportion	5:8 portrait
Mounting Location	Door-leaf observation opening
Window Movement	Fixed within host leaf
Supplied Component	Large door vision panel
Customization	Perimeter retention and leaf integration can be adapted to the intended large-view personnel-door application.

Applications

Personnel doors needing a larger traffic viewing field
Laboratory entrances with extended vertical observation openings

Solutions for Your Application

Equipment being wheeled toward the entrance occupies more of the approach than a narrow door light reveals.

Use the broad 500 mm width and long 800 mm viewing area to observe more of the approach before moving the door.

An existing leaf prepared for a smaller light cannot accept the larger component without changing its opening.

Use this insert with a leaf prepared around the full 500 x 800 mm perimeter and a retaining arrangement suited to its 50 mm depth.

Available Options

Large-opening retaining details
Host-leaf perimeter sealing arrangement

Planning a Cleanroom Access Door Observation Window 500 x 800 mm Large Double-Glazed Vision Panel specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
