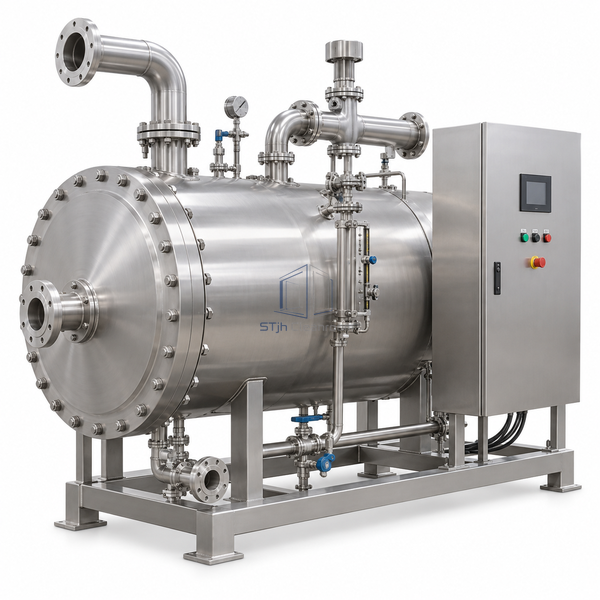

STjh 180 lb/h clean steam exchange humidifier with a broad vessel and substantial steam pipe connections on white.

STJH-CLEAN-STEAM-EXCHANGE-HUMIDIFIER-180LBH

Clean Steam Exchange Humidifier 180 lb/h

The largest selected packaged steam-to-steam humidifier, providing up to 180 lb/h through a broad exchanger and vessel.

180 lb/h output class
Large atmospheric steam vessel
Central AHU humidification duty

Request a Quote Browse Products

Product Introduction

This large shell and heat-transfer bundle produce up to 180 lb/h of clean atmospheric steam from plant-steam energy. It moves the equipment from local duct duty to central clean manufacturing humidification without relying on a large electrical resistance load.

Key Features

Central clean-steam capacity

The enlarged bundle supplies the highest output of the selected indirect humidifier series.

Reduced electrical heating demand

Plant steam provides boiling energy, leaving electricity primarily for controls and auxiliaries.

Large distribution compatibility

The output can feed an appropriately sized multi-tube duct dispersion system.

Technical Parameters

Maximum Output	180 lb/h class
Maximum Operating Pressure	15 psi
Water Supply Pressure	15-115 psi
Construction	Large packaged steam-to-steam vessel
Heat Source	Plant steam
Clean Steam	Atmospheric secondary output
Heat Exchanger	Large indirect bundle
Control	Modulating central-duty package
Installation	Large clean AHU system
Customization	Steam connection, vessel controls and dispersion system can be configured for the intended application and operating environment.

Applications

Large clean manufacturing AHUs, central pharmaceutical ventilation, healthcare air systems and high-demand controlled humidity plants.

Solutions for Your Application

Electrical infrastructure cannot support a large resistance steam generator.Use available plant steam as the indirect heat source for the 180 lb/h output.

Central output can create condensate if distributed through too few tubes.Size the dispersion grid and absorption distance for full-load airflow and temperature.

Available Options

Primary steam separator and valve, clean-water controls, automatic blowdown, multi-tube grid, condensate package, alarms and communication are available.

Planning a Clean Steam Exchange Humidifier 180 lb/h specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
