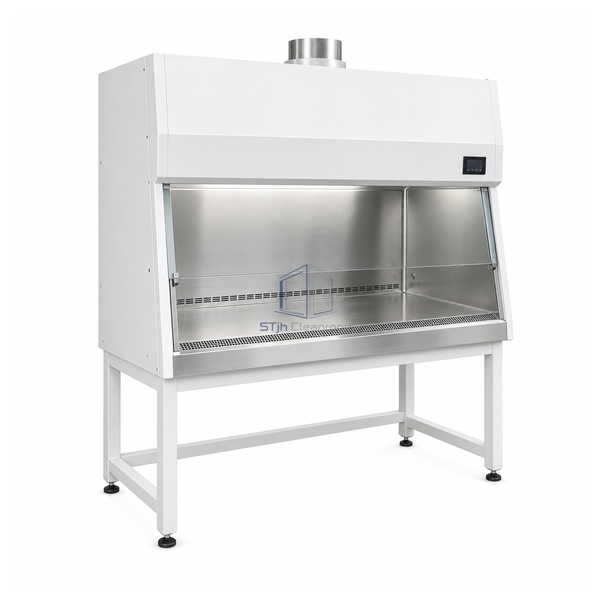

STjh 1800 mm Class II Type B2 cabinet showing a broad stainless work deck, angled sash and upper exhaust connection

STJH-CLASS-II-TYPE-B2-BIOLOGICAL-SAFETY-CABINET-1800

Class II Type B2 Biological Safety Cabinet 1800 mm

A six-foot total-exhaust Type B2 cabinet with a 1900 mm exterior and 1800 mm-class work width for bulky equipment.

Six-foot B2 work zone
100% total exhaust
Bulky equipment capacity

Request a Quote Browse Products

Product Introduction

The six-foot B2 model expands the contained workspace for multiple instruments or larger process apparatus. Its 203 mm opening and total-exhaust architecture serve high-throughput or equipment-intensive operations that would crowd the 1200 mm cabinet.

Key Features

Extended interior width

The 1800 mm-class chamber accommodates large apparatus and separated work stages.

Controlled 203 mm opening

The defined sash opening establishes the operating access condition.

Facility exhaust integration

All supply and inflow air is discharged through the connected building system.

Technical Parameters

Exterior Dimensions	1981 x 803 x 1816 mm
Cabinet Class	Class II Type B2
Interior Width	1841 mm
Work Opening	203 mm
Exhaust Architecture	100% total exhaust
Facility Connection	Hard duct
Interior	Stainless steel
Operator Layout	Wide multi-instrument process
Primary Use	High-throughput hazardous workflow
Customization	Duct interface, service positions and support base can be tailored to the equipment layout.

Applications

Large total-exhaust microbiology, equipment-intensive containment and suitable hazardous or volatile laboratory processes.

Solutions for Your Application

Bulky equipment blocks safe manipulation in the four-foot B2 cabinet.Use the six-foot work zone to separate equipment and active handling space.

The larger cabinet adds facility exhaust demand.Size and control the hard-duct system for the selected six-foot cabinet before installation.

Available Options

Service fixtures, base stand, duct transition and exhaust controls can be selected.

Planning a Class II Type B2 Biological Safety Cabinet 1800 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
