STJH-CHEMICAL-FILTER-CARTRIDGE-148X240

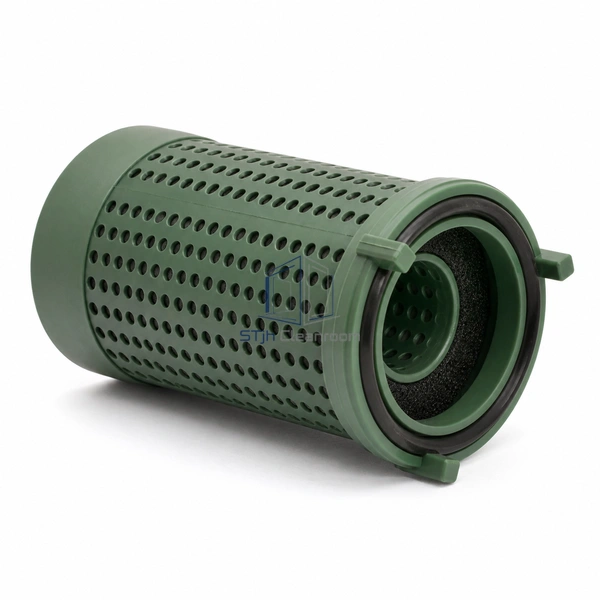

Cylindrical Chemical Filter Cartridge 148 × 240 mm

A short interchangeable gas-phase cartridge for compact equipment and localized contaminant control.

240 mm compact length
1250 m3/h per 16 cartridges
Multiple contaminant media options

Request a Quote Browse Products

Product Introduction

This 148 mm-diameter, 240 mm-long cartridge is the compact choice for equipment with limited service depth. A sixteen-cartridge frame is rated around 1250 m3/h, while the 60-100 Pa resistance range varies with the selected media. The same cylinder format can carry blends directed at VOCs, acids, bases, sulfur compounds or mixed gas, so its identity is defined by both the physical size and the documented media charge.

Key Features

Compact bayonet format

The short cylinder locks into a matched plate without requiring a full-depth chemical-filter cassette.

Contaminant-specific fill

Media can be selected for VOC, acid, base, sulfur or mixed-gas service from the measured challenge.

Replaceable modular capacity

Banks can add or remove cartridge positions to match flow and chemical capacity.

Technical Parameters

Cylinder Diameter	148 mm
Cylinder Length	240 mm
Bank Airflow	1250 m3/h for 16 cartridges
Initial Pressure Drop	60-100 Pa depending on media
Media Options	VOC, acids, bases, sulfur compounds or mixed gas
Mounting Interface	Bayonet cartridge plate
Housing Requirement	Sealed molecular-filter cabinet
Upstream Protection	Particle prefilter recommended
Replacement Basis	Contaminant capacity rather than dust loading
Customization	Available based on the intended application and operating environment.

Applications

Suitable for compact air cleaners, process-tool filtration, local recirculation units and small gas-phase housings where the target gas is known.

Solutions for Your Application

The shortest cartridge lacks enough chemical capacity for a concentrated process stream.Calculate required adsorbent mass and move to a longer cylinder or a larger parallel bank where the 240 mm charge is insufficient.

A cartridge filled for one gas is reused after the contaminant profile changes.Label the selected media chemistry and reassess the fill whenever process chemicals, outdoor-air source or humidity changes.

Available Options

Specify contaminant species, media formulation, cartridge count, mounting plate, housing material, gasket and monitoring interval.

Planning a Cylindrical Chemical Filter Cartridge 148 × 240 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
