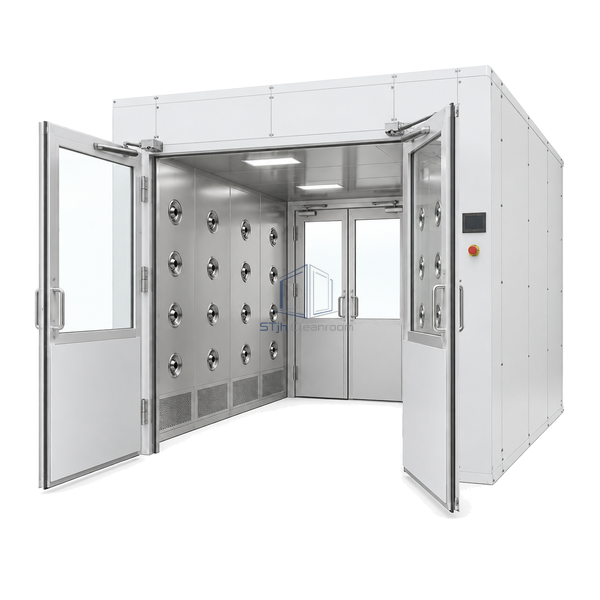

STjh 90-inch-wide floorless cargo air shower with twin hinged doors, glazed upper panels and solid lower kick plates

STJH-CARGO-AIR-SHOWER-90X96-DOUBLE

Cargo Air Shower 90 × 96 in Double-Door

An extra-wide floorless cargo shower with paired doors for large carts and process equipment.

72 x 80 in clear opening
1820 CFM at 2 in w.g.
Floorless knock-down body

Request a Quote Browse Products

Product Introduction

The 90 x 96 x 120 in knock-down body provides a 72 x 80 in clear doorway through two 36 in leaves. At a published 1820 CFM against 2 in w.g., it is designed around large-load passage rather than the more compact 76.5 in cargo enclosure. The no-floor construction allows facility flooring to continue beneath large equipment.

Key Features

Paired wide doors

Two 36 in leaves create a 72 in opening for equipment that cannot pass through a standard personnel doorway.

High-resistance airflow duty

The published blower point provides 1820 CFM at 2 in w.g. for the large shower enclosure.

Continuous facility floor

No integral floor avoids a raised base beneath heavy wheeled loads.

Technical Parameters

External Dimensions	90 W x 96 D x 120 H in
Clear Door Opening	72 W x 80 H in
Door Configuration	Paired 36 in doors
Reference Airflow	1820 CFM at 2 in w.g.
Floor	None
Construction	Knock-down body
Load Type	Large carts and process equipment
Passage Direction	Straight-through
Installation Interface	Sealed to facility floor
Customization	Available based on the intended application and operating environment.

Applications

For transfer of large process skids, wide carts and equipment into clean manufacturing suites. The floor must remain level across both thresholds and support the maximum transport load.

Solutions for Your Application

A single cargo door is too narrow for the equipment envelope.Open both 36 in leaves to provide the full 72 in clear passage.

A raised chamber base cannot carry or clear the load.Use the floorless construction and seal the cabinet to a load-rated facility floor.

Available Options

Define door operation, floor perimeter, cabinet finish, controls, jet layout and knock-down shipping sections. Verify equipment width, height and turning path before fabrication.

Planning a Cargo Air Shower 90 × 96 in Double-Door specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
