STJH-CARBON-POCKET-FILTER-594X594X500

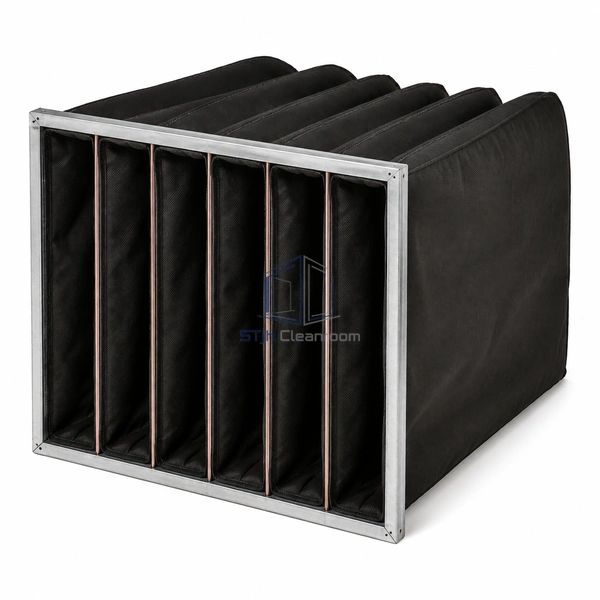

Activated Carbon Pocket Filter 594 × 594 × 500 mm High-Capacity

A full-size six-pocket carbon module with 500 mm depth for maximum airflow and media area in this bag-filter group.

Six 500 mm pockets
0.94 m3/s airflow
Full 594 mm-square face

Request a Quote Browse Products

Product Introduction

This high-capacity model uses a full 594 x 594 mm face, six pockets and a 500 mm projection to reach 0.94 m3/s at a published 70 Pa initial drop. The longer pockets provide more active carbon media area and contact opportunity than the two 300 mm-deep variants. It requires a full-size track and sufficient downstream clearance, making it best suited to purpose-sized cleanroom support or make-up-air units.

Key Features

Maximum family airflow

The full-square face and six-pocket layout support nearly one cubic metre per second through one filter opening.

Extended adsorption area

Five-hundred-millimetre pockets carry more carbon-bearing media and provide a longer airflow path than compact 300 mm bags.

Uniform pocket distribution

Six separated pockets divide the air across the full face when adequate downstream space allows complete inflation.

Technical Parameters

Dimensions	594 x 594 x 500 mm
Pocket Count	6
Rated Airflow	0.94 m3/s
Initial Pressure Drop	70 Pa
Media Type	Impregnated activated-carbon pocket media
Header Depth	22 mm
Pocket Depth	500 mm
Primary Duty	High-capacity particulate and light gas control
Installation Position	Full-module AHU filter bank
Customization	Available based on the intended application and operating environment.

Applications

Intended for full-size make-up-air and recirculation units serving cleanroom support zones, laboratories and controlled facilities with light gaseous contamination. The six-pocket module benefits systems that have enough downstream depth and want greater airflow per opening than compact carbon bags.

Solutions for Your Application

The long pockets contact a coil, damper or inspection door when airflow starts.Reserve more than the 500 mm nominal projection for inflation and service, and check the entire downstream envelope on the AHU drawing.

High airflow shortens molecular contact time or drives early odor breakthrough.Operate at the 0.94 m3/s rating or below and select carbon loading and impregnation from the actual contaminant concentration and humidity.

Available Options

Confirm header profile, gasket side, pocket support, carbon chemistry, upstream prefilter, available projection depth and change interval basis.
