STJH-CARBON-PANEL-FILTER-600X600X50-HF

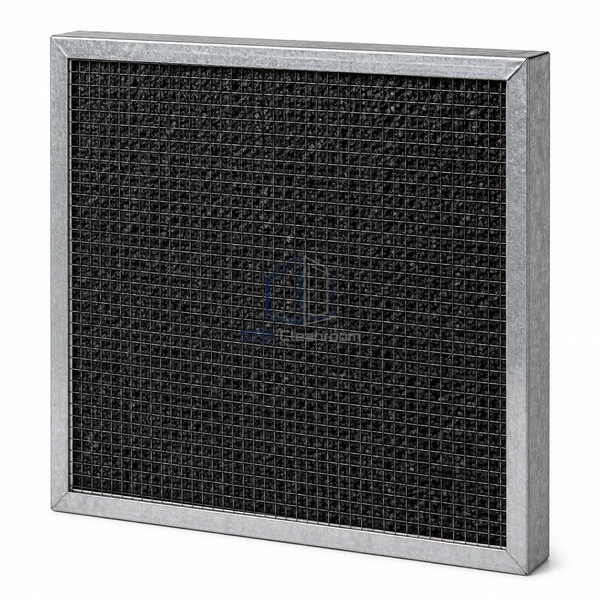

Activated Carbon Panel Filter 600 × 600 × 50 mm High-Flow

A reinforced full-square molecular panel for higher airflow and adsorbent capacity in 600 mm-class AHU openings.

720 m3/h high-flow duty
600 x 600 x 50 mm full module
165 Pa initial drop

Request a Quote Browse Products

Product Introduction

This 600 x 600 x 50 mm model is the high-flow member of the panel group, rated 720 m3/h at a substantially higher 165 Pa starting resistance. The full square face and deeper loose-fill bed suit industrial or clean-support AHUs that need more molecular treatment per opening. Fan reserve should be checked carefully, and the larger media volume should not be mistaken for universal suitability against every gas.

Key Features

Full-opening capacity

The 600 mm square face maximizes molecular media volume within a common full-module rack opening.

Higher throughput design

A reinforced metal panel is configured for 720 m3/h, more than double the intermediate-width model's rated flow.

Serviceable media selection

Carbon or impregnated fill can be chosen for the target gas and may be refillable in appropriate maintenance programs.

Technical Parameters

Dimensions	600 x 600 x 50 mm
Rated Airflow	720 m3/h
Initial Pressure Drop	165 Pa
Adsorbent Media	Activated carbon or impregnated adsorbent
Frame Material	Metal
Panel Duty	High-flow molecular adsorption
Maximum Operating Temperature	80 C
Maximum Relative Humidity	90% RH
Installation Access	Front- or side-access full-module rack
Customization	Available based on the intended application and operating environment.

Applications

Intended for full-module industrial AHUs and cleanroom support ventilation with higher airflow and moderate-to-high odor or gas loading. Prefiltration, correct adsorbent choice and a gas-breakthrough maintenance plan are essential to useful operation.

Solutions for Your Application

The full-square carbon upgrade exceeds the fan's available static pressure.Include the 165 Pa clean drop at 720 m3/h in the fan check and reduce per-panel flow or add bank area if necessary.

A large carbon volume is assumed to control a gas for which the media has poor affinity.Identify contaminant species, concentration, humidity and temperature before selecting standard or impregnated adsorbent.

Available Options

Specify gas target, adsorbent type and mass, frame material, spill-control layer, bank orientation and service-access plan.
