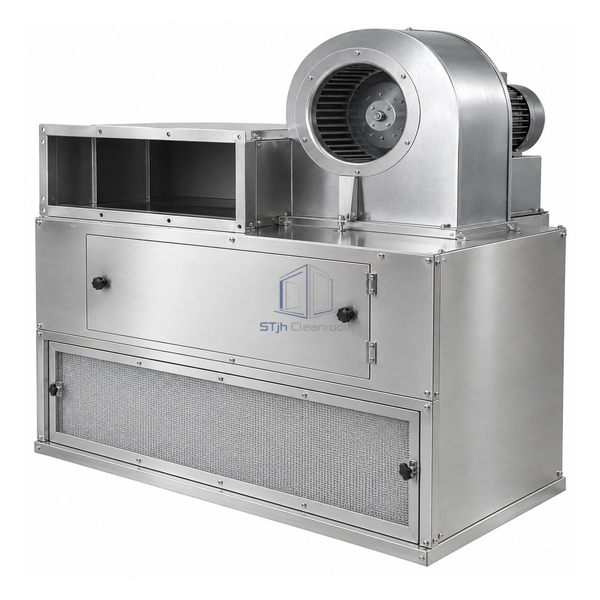

STjh 680 by 835 mm blower-filter unit with elongated stainless plenum and top sirocco blower

STJH-BLOWER-FILTER-UNIT-680X835

Blower Filter Unit 680 × 835 mm

An intermediate rectangular BFU with a longer filter and blower envelope than the square model.

680 x 835 mm rectangular footprint
550 mm casing depth
220 V single-phase supply

Request a Quote Browse Products

Product Introduction

The 680 x 835 x 550 mm BFU extends the cabinet along one axis while retaining the same depth and electrical basis as the square unit. Its added length provides a larger air-path and filter envelope for medium recirculation loops. SS41 and SUS304 housing options allow the enclosure material to be matched to the cleaning environment.

Key Features

Intermediate casing length

The 835 mm axis adds capacity without adopting the longest 985 mm family enclosure.

Equipment-side integration

The rectangular body follows medium tools and recirculation plenums more closely than a square cabinet.

Material selection

The casing is available in standard SS41 or cleanable SUS304 construction.

Technical Parameters

External Dimensions	680 x 835 x 550 mm
Blower Type	Sirocco centrifugal blower
Power Supply	220 V single phase, 60 Hz
Housing Material	SS41 steel or SUS304 stainless steel
Airflow Direction	Filtered recirculation or supply
Filter Configuration	Matched to the process cleanliness requirement
Connection	Rectangular casing or duct connection
Installation	Equipment-side or plenum mounting
Service Access	Panel location selected for the equipment layout
Customization	Available based on the intended application and operating environment.

Applications

Designed for medium cleanroom recirculation loops, enclosed production equipment and filtered-air supply points where a square BFU has insufficient air-path area. Long-side support and service clearance should be provided.

Solutions for Your Application

The compact square casing restricts the available filter envelope.Use the 835 mm body to gain length while retaining a 680 mm width.

A full-length unit would occupy too much equipment roof space.Select this intermediate format when it meets the verified pressure and airflow duty.

Available Options

Specify SS41 or SUS304, final filter, blower operating point, inlet and outlet connections and access orientation. Verify the 60 Hz electrical basis before ordering.
