STJH-BIBO-HEPA-HOUSING-GASKET-1X1

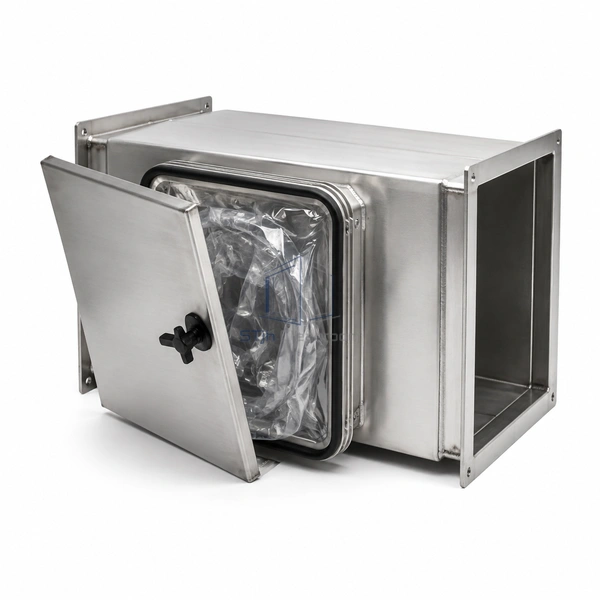

Bag-In/Bag-Out HEPA Filter Housing 1 × 1 Gasket-Seal

A one-filter safe-change housing using gasket compression and a side bagging port for contained replacement.

One full-size HEPA cell
Gasket compression seal
Ribbed BIBO bagging ring

Request a Quote Browse Products

Product Introduction

This one-by-one containment section accepts a single full-size HEPA element and seals it by controlled gasket compression. A ribbed bagging ring and PVC change bag keep the used filter isolated from personnel and the surrounding room during removal. The compact single-cell format suits individual exhaust branches and can be arranged for horizontal, upflow or downflow service when the selected housing layout supports that orientation.

Key Features

Contained single-filter service

The change bag encloses one used HEPA element before it leaves the housing access port.

Mechanical gasket loading

The clamping frame applies repeatable pressure to the filter perimeter gasket.

Welded pressure boundary

A fully welded enclosure minimizes cabinet joints in the contaminated exhaust path.

Technical Parameters

Filter Capacity	One full-size HEPA filter
Filter Seal	Compression gasket
Housing Construction	Fully welded metal cabinet
Change System	Ribbed bagging ring with PVC bag
Access	Side service door
Flow Orientation	Horizontal, upflow or downflow by design
Primary Filter Depth	Matched to selected full-size HEPA element
Containment Feature	Bag-in/bag-out filter change
Connection	Duct flange to project dimensions
Customization	Available based on the intended application and operating environment.

Applications

For biosafety laboratories, pharmaceutical containment rooms and hazardous process exhaust branches that require one full-size HEPA filter and controlled change-out.

Solutions for Your Application

The replacement filter does not achieve uniform gasket compression.Match filter depth and gasket position to the clamping frame, then verify the installed seal through the specified test ports.

The change bag cannot be manipulated within the service aisle.Reserve clear space beyond the bagging ring for bag extension, filter withdrawal, sealing and transfer.

Available Options

Confirm filter size and depth, gasket side, cabinet material, airflow direction, test ports, prefilter section, bag material and duct transitions.
