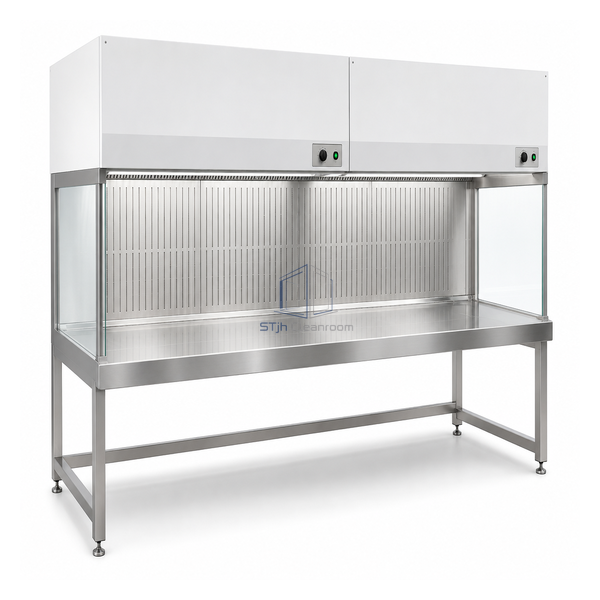

STjh wide 6 foot benchtop laminar-flow hood with two-section HEPA housing and dual-position stainless deck

STJH-BENCHTOP-LAMINAR-FLOW-HOOD-6FT

Benchtop Laminar Flow Hood 6 ft

A wide benchtop clean-air enclosure for large instrumentation or two carefully separated compact work positions.

6 ft wide benchtop enclosure
Large-instrument or dual-position layout
24 or 30 in depth options

Request a Quote Browse Products

Product Introduction

This six-foot hood expands lateral working room for large precision instruments, long assemblies or two compact task stations. Users can select a 24 or 30 in depth and the appropriate horizontal or vertical airflow family. The long opening requires a load-rated bench and a planned fixture layout so equipment does not create uneven airflow across adjacent critical zones.

Key Features

Wide process coverage

The six-foot span keeps larger assemblies and associated tools within one clean-air enclosure.

Flexible workstation planning

The interior can support one large instrument or two compact processes with defined separation.

Selectable enclosure build

Panel and airflow choices adapt the hood to visibility, sanitation or static-control priorities.

Technical Parameters

Nominal Width	6 ft
Depth Options	24 or 30 in
Airflow Configuration	Vertical or horizontal by selected family
Final Filter	HEPA
Panel Materials	Stainless steel, acrylic or static-dissipative PVC
Installation	Benchtop
Work Capacity	Large instrument or two compact positions
Lighting	Full-width task-light option
Support Requirement	Level load-rated bench
Customization	Available based on the intended application and operating environment.

Applications

For large precision assembly, clean laboratory instrumentation and extended electronics inspection. The supporting bench and utility routing must be sized for the wider, heavier enclosure and installed process equipment.

Solutions for Your Application

A four-foot hood leaves part of a long assembly outside the protected zone.Use the six-foot enclosure and position the complete critical length beneath the filtered air supply.

The existing bench may deflect under a wide hood and instruments.Verify distributed load capacity and provide level continuous support before installation.

Available Options

Select depth, airflow family, stainless/acrylic/SDPVC panels, lighting, monitoring and power. Utility penetrations and internal task divisions can follow the validated equipment layout.

Planning a Benchtop Laminar Flow Hood 6 ft specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
