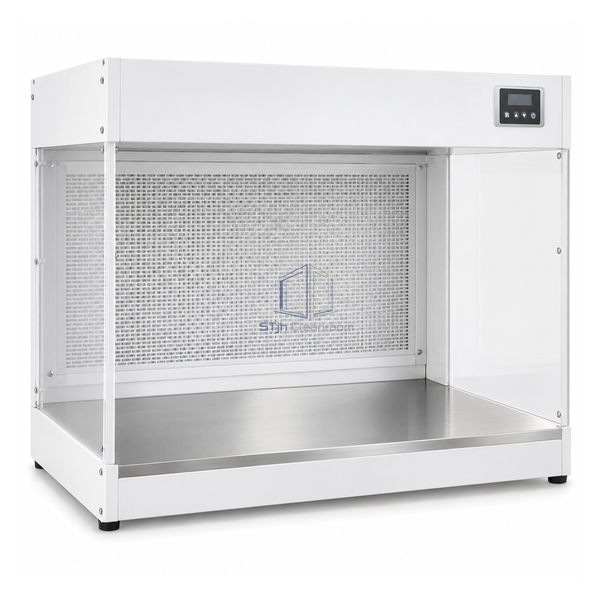

STjh compact 3 foot benchtop horizontal laminar-flow hood with rear HEPA panel and clear side walls

STJH-BENCHTOP-LAMINAR-FLOW-HOOD-3FT

Benchtop Horizontal Laminar Flow Hood 3 ft

A compact horizontal-flow hood that converts an existing laboratory bench into a protected non-hazardous work zone.

37 in compact exterior width
36 x 25 x 28 in work area
Existing-bench installation

Request a Quote Browse Products

Product Introduction

This benchtop hood fits a 37 in exterior width while providing a 36 x 25 x 28 in work area. Rear-to-front HEPA-filtered airflow protects small non-hazardous cultures, optics or assemblies without requiring a floor-standing cabinet. Its clearly defined 36 in interior is intended for one compact process and existing bench support.

Key Features

Countertop conversion

The hood adds a protected work zone to a suitable existing bench without a dedicated base cabinet.

Useful interior height

A 28 in work-area height accommodates small instruments that may not fit beneath a low sash.

Horizontal product protection

HEPA-filtered air moves from the rear wall across non-hazardous samples toward the operator.

Technical Parameters

External Width	37 in
Work Area	36 W x 25 D x 28 H in
Nominal Size	3 ft
Airflow Direction	Horizontal, rear to front
Final Filter	HEPA
Installation	Benchtop
Application Type	Non-hazardous product protection
Panel Construction	Cleanable rigid enclosure
Support Requirement	Level load-rated laboratory bench
Customization	Available based on the intended application and operating environment.

Applications

For small cell-culture, optical cleaning and sterile non-hazardous preparation on an existing laboratory counter. Verify the bench load rating and leave service space around the filter and blower enclosure.

Solutions for Your Application

There is no floor space for a full clean bench and stand.Install the compact hood on a suitable existing bench after checking support capacity.

A small hood may not clear the intended instrument.Confirm the device fits inside the 36 x 25 x 28 in usable work area with airflow clearance.

Available Options

Select panel material, lighting, electrical configuration, airflow monitor and service penetrations. Bench reinforcement and work-surface finish can follow the equipment load.

Planning a Benchtop Horizontal Laminar Flow Hood 3 ft specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
