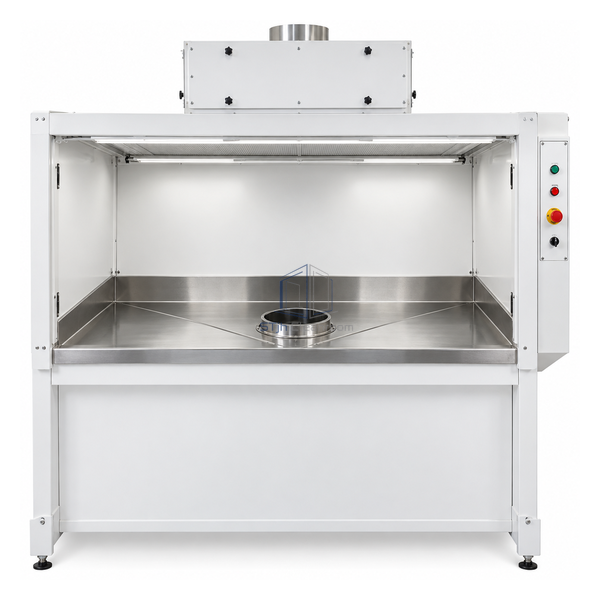

STjh HEPA bag dump station with centered source-container opening and symmetric stainless spill trough

STJH-BAG-DUMP-STATION-CENTER-ACCESS

Cleanroom Bag Dump Station Center-Access

A straight-line powder transfer station aligning the source bag and access opening with a central hopper or receiver.

Central source-container opening
30 in-deep work zone
Straight-line hopper alignment

Request a Quote Browse Products

Product Introduction

The center-access configuration places the source-container opening directly beneath the middle of the work zone. Its 30 in depth and 32 in interior height accommodate a large container and hydraulic-lift caddy while HEPA-filtered negative airflow captures airborne powder. This layout avoids the side offset required by left- or right-access rooms.

Key Features

Direct vertical transfer

The centered opening aligns the bag with a receiver positioned on the process centerline.

Large equipment clearance

The 32 in height and 30 in depth support bulk containers and handling tools.

Automatic lift positioning

A beam-sensed hydraulic caddy can stop the source container at the working height.

Technical Parameters

Source Access	Center
Interior Depth	30 in
Interior Height	32 in
Sash Opening	12 in nominal
Pressure Mode	Negative
Exhaust Filter	HEPA, 99.99% at 0.3 µm
Blower	Remote, ducted
Work Surface	Stainless steel with spill trough
Container Handling	Hydraulic lift caddy
Customization	Available based on the intended application and operating environment.

Applications

For straight-line bag dumping into a centrally positioned hopper or receiving vessel. Align the caddy, access ring and downstream receiver before setting airflow.

Solutions for Your Application

Side access forces operators to twist a heavy bag toward the receiver.Use the center opening to keep source and destination on one axis.

Manual lifting cannot consistently position a bulk container.Use the beam-controlled hydraulic caddy to stop at the working height.

Available Options

Select access-ring diameter, safety sleeves, caddy, utility shelf and holder. Remote blower and ductwork must be sized to the installation.

Planning a Cleanroom Bag Dump Station Center-Access specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
