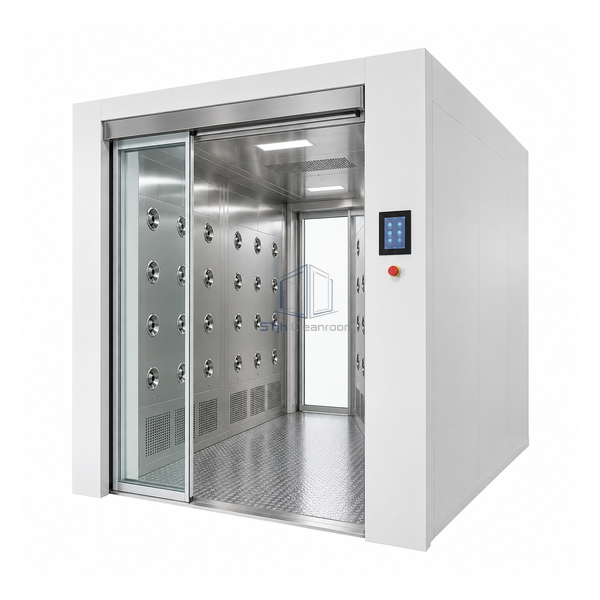

STjh automatic sliding-door air shower with an extended 1500 mm stainless-steel personnel passage

STJH-AUTOMATIC-SLIDING-DOOR-AIR-SHOWER-800X1500

Automatic Sliding-Door Air Shower 800 × 1500 mm

An extended single-section sliding-door air shower for controlled one- or two-person entry.

800 x 1500 mm passage
One-to-two-person capacity
18-nozzle single section

Request a Quote Browse Products

Product Introduction

This version lengthens the clear passage to 1500 mm while retaining the 800 mm width and 18-nozzle three-side arrangement. It can accommodate one or two people without adding a second nozzle section, making it a moderate-traffic alternative to the compact model. Automatic single-panel doors and a floorless threshold support hands-free entry with carts kept outside the personnel cycle unless their clearance is separately assessed.

Key Features

Additional standing depth

The extra 500 mm allows paired users to position themselves without increasing passage width.

Space-saving powered doors

Single-panel sliding operation preserves clear approach space at both ends of the airlock.

Moderate electrical scope

One 18-nozzle section avoids the duplicated jet field of the 2000 mm model.

Technical Parameters

Overall Size	1900 W x 1800 D x 2140 H mm
Effective Passage	800 W x 1500 D x 1950 H mm
Occupancy	1-2 people
Automatic Door	Single-panel slide
Integral Floor	None
Nozzle Quantity	18
Jet Arrangement	Two wall banks plus ceiling outlets
Electrical Supply	AC 200 V, three phase, 50/60 Hz
Installation Need	Lateral sliding-door pocket and sealed level floor
Customization	Available based on the intended application and operating environment.

Applications

Useful at medium-traffic cleanroom entrances in medical-device assembly, optics and pharmaceutical support areas. Occupancy limits and cycle duration should be set so both users receive unobstructed exposure to the side jets.

Solutions for Your Application

The one-metre chamber is too tight for two gowned operators.Use the 1500 mm passage to provide additional separation during a paired cycle.

More chamber depth is needed but a second jet section is unnecessary.Select this 18-nozzle intermediate model instead of the longer 36-nozzle configuration.

Available Options

Configure sensors, access controls, slide direction, safety edges, finish and timer settings. Verify that the paired occupancy does not obstruct nozzle discharge or door sensing zones.

Planning a Automatic Sliding-Door Air Shower 800 × 1500 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
