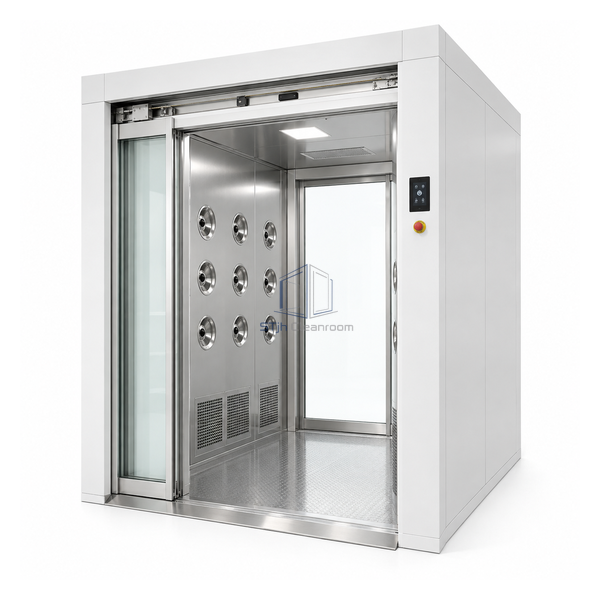

STjh compact automatic air shower with a single clear sliding entrance panel and an 800 by 1000 mm passage

STJH-AUTOMATIC-SLIDING-DOOR-AIR-SHOWER-800X1000

Automatic Sliding-Door Air Shower 800 × 1000 mm

A compact touch-free air shower with single-panel sliding doors and an 800 mm clear passage.

800 x 1000 x 1950 mm clear passage
Single-panel automatic sliding doors
18 side-and-ceiling nozzles

Request a Quote Browse Products

Product Introduction

The 1000 mm deep passage is the shortest automatic-door configuration in this family and is sized for one person per cycle. Eighteen nozzles blow from both walls and the ceiling, while single-panel sliding leaves avoid door swing inside the approach zones. Its floorless construction permits a continuous finished floor across the 800 mm wide route.

Key Features

Touch-free compact entry

Automatic leaves and a short chamber support hands-free one-person movement at a small cleanroom portal.

No swing obstruction

Door panels travel beside the opening instead of sweeping into the gowning or clean-side aisle.

Three-side blow pattern

Eight nozzles on each side and two overhead outlets surround the user within one section.

Technical Parameters

External Dimensions	1900 W x 1300 D x 2140 H mm
Clear Passage	800 W x 1000 D x 1950 H mm
Cycle Capacity	1 person
Door Type	Single-panel automatic sliding
Floor Configuration	Floorless
Total Nozzles	18
Nozzle Distribution	8 per side plus 2 ceiling outlets
Power Supply	AC 200 V, three phase, 50/60 Hz
Traffic Mode	Straight-through automatic passage
Customization	Available based on the intended application and operating environment.

Applications

For compact pharmaceutical, electronics and laboratory entrances where operators carry trays or need to avoid touching handles. Provide lateral door-pocket space and a level sealed floor across both thresholds.

Solutions for Your Application

Swing doors interfere with the gowning-room aisle.Use single sliding leaves that remain parallel to the chamber during opening.

The short chamber could be overloaded during shift changes.Operate it as a one-person cycle and match access timing to the expected arrival rate.

Available Options

Select sensor activation, access reader, door safety edges, cabinet finish and shower timing. Confirm panel-pocket and maintenance clearance on both sides of the automatic doors.

Planning a Automatic Sliding-Door Air Shower 800 × 1000 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
