A fixed sweep drags during opening.
The seal lifts as the plunger is released.
STJH-AUTOMATIC-DOOR-DROP-SEAL-MORTISED-SLIM

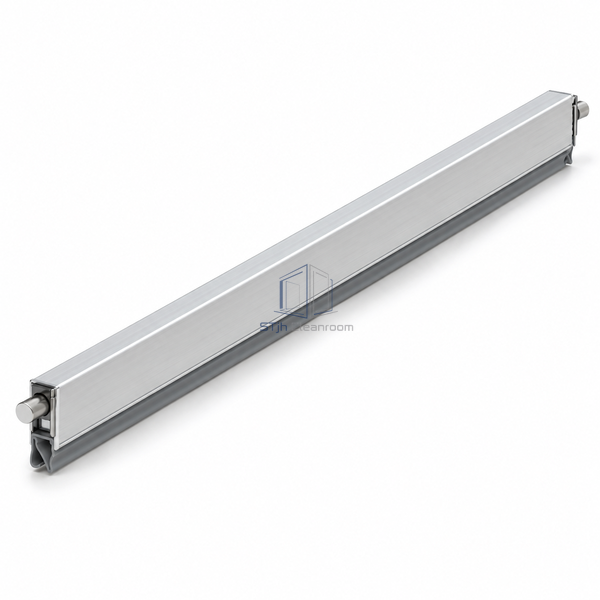

Automatic Door Drop Seal Slim Mortised
Close the door-bottom gap with a slim seal that retracts automatically when the leaf opens.
- Fully mortised installation hides the carrier.
- Self-levelling action accommodates small floor variations.
- Mechanical operation avoids a separate electrical supply.
Product Introduction
The slim carrier fits fully inside a prepared groove at the bottom of a metal or aluminum-compatible door leaf. A mechanical plunger contacts the frame during closure and lowers the sealing element toward the floor. Opening the door releases that action so the seal rises clear. The concealed arrangement preserves the visible door faces and provides a moving bottom seal without introducing a powered actuator or a permanently dragging strip.
Key Features
- Fully mortised installation hides the carrier.
- Self-levelling action accommodates small floor variations.
- Mechanical operation avoids a separate electrical supply.
Technical Parameters
| Mounting | Fully mortised |
|---|---|
| Actuation | Mechanical plunger |
| Power Requirement | None |
| Seal Motion | Automatic downward travel |
| Opening Action | Retracts clear of floor |
| Adjustment | Self-levelling |
| Carrier Format | Slim linear profile |
| Door Compatibility | Suitable metal or aluminum preparations |
| Location | Bottom edge of door leaf |
| Customization | Carrier length and preparation can suit the intended door width. |
Applications
- Metal cleanroom access leaves.
- Concealed bottom-seal installations.
Solutions for Your Application
Surface hardware would interrupt the door face.
The carrier is installed completely within the bottom preparation.
Available Options
- Door-width length selection.
- Compatible threshold plate.
Planning a Automatic Door Drop Seal Slim Mortised specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
